3'' 4'' 5'' 6'' 8" 10'' 12'' Stainless Steel Camlock Coupling
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-QC-01 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD25 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 12in stainless steel camlock coupling,10in stainless steel camlock coupling,4in stainless steel camlock fittings |
||
|---|---|---|---|
Product Description

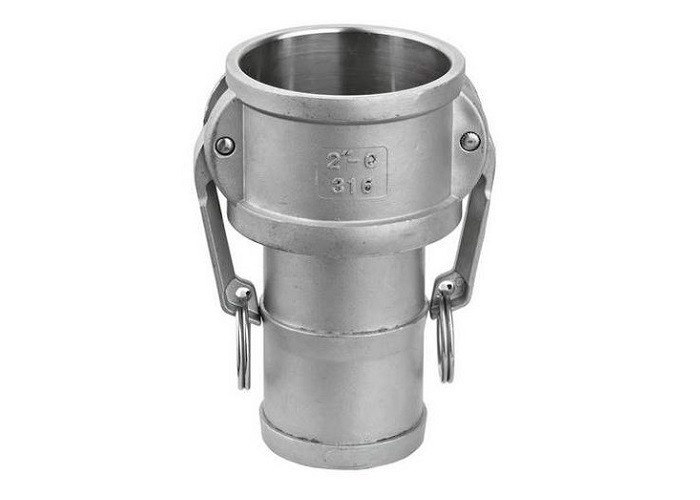

3'' 4'' 5'' 6'' 8" 10'' 12'' Stainless Steel Camlock Coupling
Camlock couplings are well-known as quick hose coupling providing quick connection and disconnection for pumps, tanks, equipment, Stainless steel cam lock fittings allow for quick and secure hose connections. The camlock couplings mate by inserting the grooved coupling into the cam coupling and simply closing the cam or lever arms. Safety pins or locks prevent the cam arms from accidental disconnection during use.
Product Information/Product Description/Basis Information/Specification
| Name | Camlock Quick Coupling |
| Material | stainless steel ANSI 304,316,304L,316, Aluminum, Brass, PP |
| Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" 10" 12" |
| Thread | Thread BSP, BSPT, NPT, DIN259/2999 |
| Type | A, B, C, D, E, F, DC, DP (A, B, D, F with thread, B, C, D, DC with handles) |
| Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread) of the same size | |
| Type "B", has a female camlock end and a male pipe thread of the same size | |
| Type "C", has a female camlock on one end and a male hose tail on the other | |
| Type "D", has a female camlock end and a female pipe thread of the same size | |
| Type "E", has a male camlock on one end and a male hose tail on the other | |
| Type "F", has a male grooved adaptor and a male pipe thread of the same size | |
| Gaskets | NBR, EPDM, Viton, PTFE gasket are all available |
| Cam levers | We use stainless steel cam levers |
| Pressure | 3/4"-2" 250PSI (17.6bar),3"-4" 200PS I(14.8bar) |
| 2 1/2" 225PSI (15.8bar),6" 150PSI (10.5bar) | |
| Technology | Investment casting. Precision casting, NC machine |
| Packing | pcs/polybag, polybag/carton, cartons/pallet or according to your requirement |
| Certificate | ISO9001:2015 |
| Process | CNC machine, Testing equipment |
Features /Advantages:
1.Simple structure, convenient operation, quick connect and open it.
2.compact size, light weight, good sealing and interchangeability.
3.Adapt to all kinds of working conditions, widely used in liquid, powder and other medium.
4.Joint connected with taper pipe threads, outside taper pipe threads, intubation connection, flange connection, etc.
5. Cam & groove couplings are easy to operate. Camlock consists of two parts - male adapter and female coupler. You just need insert the adapter into the coupler until contact is made with the gasket. Then press down the cam arms simultaneously to produce a uniform gasket compression. During the process of installation, no tools are required and hand pressure is enough. Hence, camlock fittings not only save your time but also the tools and human power.
6. Cam & groove couplings are equipped with PVC suction hoses, lay flat discharge hoses and other low-pressure hoses. It can simplify the operation and save working time greatly. However, cam locks are not suitable for any kind of hose. It is forbidden to be used in compressed air or gas or high-pressure applications.
Types of the cam & groove couplings
Application and usage
Quick release coupling for low-pressure systems, Suitable for Construction; Fire hydrant; Garden; Farming
Our Service
1. Technical support
2. Raw Material Quality control.
3. Inspection during the production time.
4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test
5. Test Report each shipment
4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU
5. Flexible payment Ways: LC. TT. DP
6. Customized Package includes Logo. Cases Dimension.
7. 18 months quality Guarantee time.
9. Free replacement by air if any error founded
10. 24 hours to Feedback your questions
