150PSI NPT BSPT Threaded Pipe Fittings Stainless Steel Screwed Welded Nipple
| Place of Origin | China |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | STH-TH-14 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10pcs |
| Price | USD0.5-USD50 for each pc |
| Packaging Details | Cartons+Ply-wooden cases, Pallets |
| Delivery Time | 7 days for stock items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000000PCS one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thread | ANSI B.1.20.1 DIN 2999, ISO 7/1, ISO 228, NPT, BSPT, BSP | Thickness | Sch20, Sch40, Sch80, Sch120, Sch160,xs, Xxs, Customize |
|---|---|---|---|
| Size | 1/4" To 6" 8MM-DN150MM | Length | 1/2"-12" 15mm-300mm, Longer As Per Customize |
| Material | A106GR.B, A53GR.B, API5L GR.B Stainless Steel | Surface | Black, Sandblast, Pickling, Anti-rust Oil, Zinc Plated, Galvanized. |
| Highlight | BSPT Threaded Pipe Fittings,150PSI Threaded Pipe Fittings,Screwed welded nipple |
||
Product Description

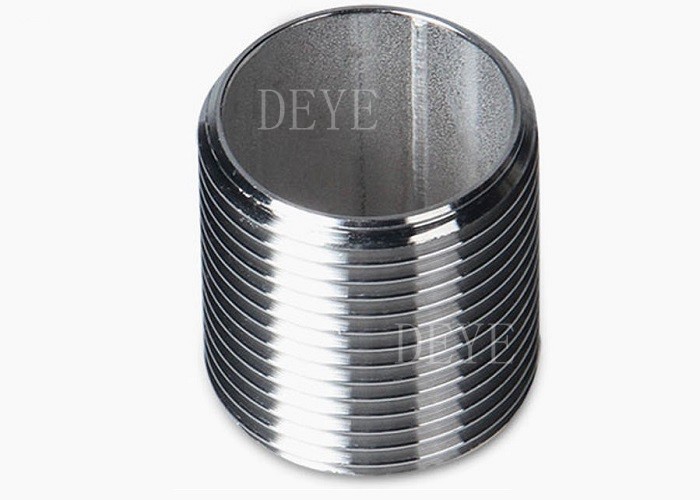

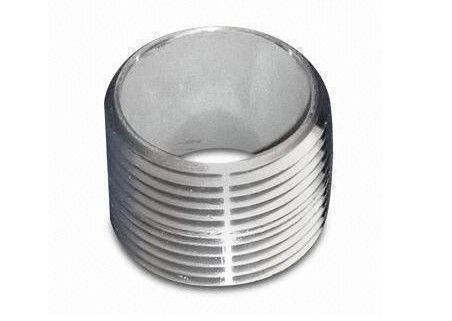

150PSI NPT BSPT STAINLESS STEEL SCREWED THREADED PIPE FITTINGS WELDED NIPPLE
150PSI NPT BSPT STAINLESS STEEL SCREWED THREADED PIPE FITTINGS WELDED NIPPLE150PSI/150LBS Threaded fittings are used for less-critical piping systems, such as water distribution, fire protection, and cooling, or for low-pressure installations not subject to vibration,elongation and bending forces. Threaded pipe fittings are not suited for fluids with constantly changing temperatures, as sudden changes may crack the connection.
The fittings are connected by NPT Threads conform to ASME B1.20.1 or BSPT Threads conform to ISO 7-1, DIN2999, BS21
Investment casting (IC) screwed or threaded fttings can be produced and supplied in various shapes such as Elbow, Street Elbow, Tee,
Reducing Tee, RT] Union, SMS Union, Cross Coupling, Half Coupling, Full Coupling Round Cap. Hexagon Cap, Hexagon Bushing, Square
Plug, Hexagon Plug, Nipple and Hexagon Nipple.
Product Information/Product Description/Basis Information/Specification
| Description | Stainless steel threaded NPT BSPT Fittings |
| Product name | threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee |
| Size | 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" |
| Gasket | NBR, FKM |
| Thread | BSPT,BSPP, NPT,PS , DIN |
| Material | stainless steel201,202, stainless steel304, stainless steel 316 |
| Casting Method | Investment precision casting, CNC machine |
| Application | Oil, Water, Industrial, Chemical |
| Test pressure | Usually 150PSI |
| Package | pcs/polybag, polybag/carton, cartons/pallet or according to your requirement |
| Advantages | 1.OEM and Customized service can be provided |
| 2. With experience,quality guaranteed | |
| 3. Approved by ISO9001:2015 | |
| 4. With independent open mold capacity, OEM supposed |
Technology/ Technical Data Sheets
 | | | | | |
| Reducing Coupling | Hex. Bushing | Hose Nipple | |||
| SIZE | C1 | C2 | SIZE | C1 | C2 | ||
| D1 | D2 | D1 | D2 | ||||
| 1/8" | - | - | - | 1-1/4" | 1/8"-1 | 44 | 26 |
| 1/4" | 1/8" | 27 | 18 | 1-1/2" | 1/8"-1-1/4" | 48 | 29.5 |
| 3/8" | 1/8"-1/4" | 34 | 19 | 2" | 1/8"-1-1/2" | 56 | 32 |
| 1/2" | 1/8"-3/8" | 36 | 22 | 2-1/2" | 1/8"-2" | 62 | 36.5 |
| 3/4" | 1/8"-1/2" | 35 | 24 | 3" | 1/8"-2-1/2" | 67 | 37.5 |
| 1" | 1/8"-3/4" | 40 | 27 | 4" | 1/8"-3" | 76 | 42 |
Production Process
Common used Material Grade
SS316 Chemical Composition
ASTM A351 CF8M, SS316 Chemical Composition in %
| ASTM A351 CF8M, SS316 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 9.0 | 18.0 | 2.00 | |||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 1.500 | 12.0 | 21.0 | 3.00 |
SS316 Mechanical Properties of the Fittings at room temperature
| SS316/SS316L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. | Hardness Test (HRB) |
| Min. | 485 | 205 | 30 | |
| Max. | 80 |
SS304 Chemical Composition
| ASTM A351 CF8, SS304 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 8.0 | 18.0 | ||||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 2.000 | 11.0 | 21.0 | 0.50 |
SS304 Mechanical Properties of the Fittings at room temperature
| SS304/SS304L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. | Hardness Test (HRB) |
| Min. | 485 | 205 | 35 | |
| Max |
Application/ Usage:
Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
