Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S

  • Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S
  • Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S
  • Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S
  • Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S
Place of Origin China
Brand Name DEYE
Certification ISO9001: 2015
Model Number PF-EL-S-01
Document Product Brochure PDF
Minimum Order Quantity 10pcs
Price USD 2-100 dollars for SS36L Reducers
Packaging Details Ply-Wooden Cases, Pallets , cartons
Delivery Time 10 work days
Supply Ability 25 tons for one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SS316/SS316L, SS304/SS304L, SS321, UNS31803, UNS32750 Connection Butt Welded BW
Thickness Sch5s, Sch10s, Sch40s, Sch80s, Sch160s, Xs, Xxs Surface Pickling, Polish
Highlight

Seamless duplex stainless steel pipe fittings

,

SCH10S duplex stainless steel pipe fittings

,

SCH40S stainless buttweld caps
Leave a Message
Product Description

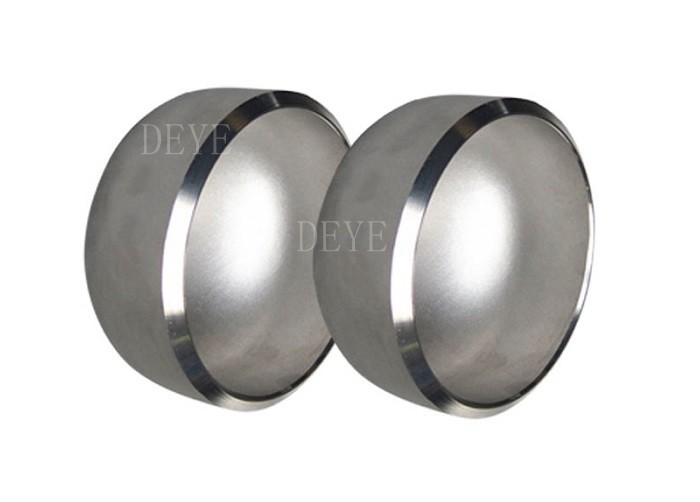

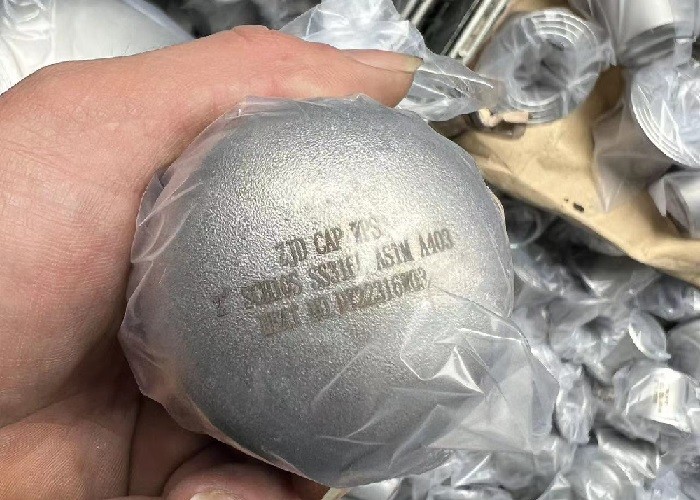

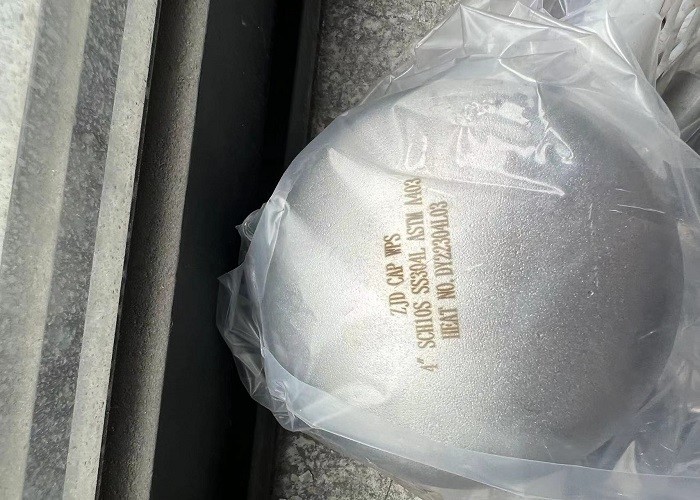

Stainless steel Caps: Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end to close the pipeline, so the function is the same as the pipe plug. Ranges from material types, there are: Carbon steel pipe cap, Stainless steel cap, Alloy steel cap. with pipe thickness SCH5SM 10SM 20SM 40SM 80S, 160S. XXS.



Products Information/Specification:



Products Name Butt-Welding Stainless steel seamless and welded Pipe Fitting with standard ANSI B16.9
Types

Caps,Con. Reducers, Ecc. redcuers, LR Elbows, SR Elbow, 180deg Returns, Bends, Reducing Eblow,

Straight Tee, Equal Tee, Y Tee, Stub Ends,
Size 1/2"-72"  DN15-DN1800
Wall Thickness From low thickness to higher thickness SCH5S,SCH10s,SCH20S,SCH30,STD,SCH40S,SCH60,XS,SCH80S,SCH100,SCH120,,SCH160S,XXS, DIN, SGP JIS thickness
Standard ASTMA312, ASTM AWP40, ASME,  A234WPB A420, ANSI B16.9/B16.28/B16.25
JIS B2311-1997/2312, JIS B2311/B2312, DIN 2605-1/2617/2615,
GB 12459-99,EN Standard etc.
Material Stainless Steel304, 304L, 304H, 316, 316L, 316H, 310, SS321, SS321H, 347, 347H, 904L
Duplex SS 2507, DSS2205, UNS31803 UNS32750
1.4301,1.4306, 1.4401, 1.4435, 1.4406, 1.4404,  1.4462, 1.4410, 1.4501
　
Carbon Steel A234 WPB, WP5, WP9,WP11, WP22, A420WPL6, A420WPL8
ST37.0,ST35.8,ST37.2,ST35.4/8,ST42,ST45,ST52,ST52.4
　
STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49
　
Surface Sandblast , acid pickling, Polished



Features /Characteristics



Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end to close the pipeline, so the function is the same as the pipe plug. Ranges from material types, there are: Carbon steel pipe cap, Stainless steel cap, Alloy steel cap

• Buttweld fittings are available in multiple shapes (elbows, tees, reducers, crosses, caps, stub ends), material grades (carbon, high-yield carbon, low-alloy, stainless, duplex, and nickel alloys)and dimensions (2 to 24 inches in seamless or welded, 26"-72" in welded ).
• Buttweld fittings are pipe fittings used to change the pathway of a pipeline (elbows), reduce/increase the pipe bore size (reducers), branch (tees, cross) or blind a pipeline (butt weld cap)
• The key specifications for buttweld fittings are the ASME B16.9 (carbon and alloy fittings) and the MSS SP 43 (that integrates ASME B16.9 for stainless steel, duplex, and nickel alloy BW fittings).
• butt weld pipe fittings are sold as SCH105S, SCH10S, SCH20S, SCH40S, STD, SCH40, SCH80S, SCH80, SCH160S, XXS
• Welded butt weld fittings are more common in stainless steel due to cost advantage. Sch 10S, SCH40S SS fittings are also more common in stainless steel butt weld fittings.
• Common material for butt weld fittings are A234 WPB, High Yield Carbon Steel, Stainless Steel 304 and 316 and Nickel Alloys.
• Welded pipe fittings in carbon steel and stainless steel are the joining components that make possible the assembly of valves, pipes and equipment onto the piping system.



Technology/ Technical Data Sheets



                                                                   Thickness List for pipefittings ANSI B16.9



Unit: mm

Pipe Size Outside Dimeter  Norminal Wall Thickness
Sch5s Sch10S Sch20 Sch30 Sch40s STD Sch40 Sch60 Sch80s XS Sch80 Sch100 Schl20 Schl40 Sch160 XXS
1/8 10. 3 —— 1. 24 —— —— 1. 73 1. 73 1. 73 —— 2. 41 2. 41 2. 41 —— —— —— —— ——
1/4 13. 7 — 1. 65 — — 2. 24 2. 24 2. 24 — 3. 02 3. 02 3. 02 — — — — —
3/8 17. 1 — 1. 65 — — 2. 31 2. 31 2. 31 — 3. 20 3. 20 3. 20 — — — — —
1/2 21. 3 1.65 2. 11 —— —— 2. 77 2. 77 2. 77 —— 3. 73 3. 73 3. 73 —— —— —— 4. 78 7. 47
3/4 26. 7 1.65 2. 11 —— —— 2. 87 2. 87 2. 87 —— 3. 91 3. 91 3. 91 —— —— —— 5. 56 7. 82
1 33.4 1. 65 2. 77 — — 3. 38 3. 38 3. 38 — 4. 55 4. 55 4. 55 — — — 6. 35 9. 09
1 1/4 42. 2 1.65 2. 77 — — 3. 56 3. 56 3. 56 — 4. 85 4. 85 4. 85 — — — 6. 35 9. 70
1 1/2 48. 3 1.65 2. 77 —— —— 3. 68 3. 68 3. 68 —— 5. 08 5. 08 5. 08 —— —— —— 7. 14 10. 15
2 60. 3 1. 65 2. 77 —— —— 3. 91 3. 91 3. 91 —— 5. 54 5. 54 5. 54 —— —— —— 8. 74 11. 07
2 1/2 73. 0 2. 11 3. 05 — — 5. 16 5. 16 5. 16 — 7. 01 7. 01 7.01 — — — 9. 53 14. 02
3 88. 9 2. 11 3. 05 — — 5. 49 5. 49 5. 49 — 7. 62 7. 62 7. 62 — — — 11. 13 15. 24
3 1/2 101. 6 2. 11 3. 05 —— —— 5. 74 5. 74 5. 74 —— 8. 08 8. 08 8. 08 —— —— —— —— ——
4 114. 3 2. 11 3. 05 —— —— 6. 02 6.02 6. 02 —— 8. 56 8. 56 8. 56 —— 11. 13 —— 13. 49 17. 12
5 141. 3 2. 77 3. 40 — — 6. 55 6. 55 6. 55 — 9. 53 9. 53 9. 53 — 12. 70 — 15. 88 19. 05
6 168. 3 2. 77 3. 40 — — 7. 11 7. 11 7. 11 — 10. 97 10. 97 10. 97 — 14. 27 — 18. 26 21.95
8 219. 1 2. 77 3. 76 6. 35 7. 04 8. 18 8. 18 8. 18 10. 31 12. 70 12. 70 12. 70 15. 09 18. 26 20. 62 23. 01 22.23
10 273. 1 3. 40 4. 19 6. 35 7. 80 9. 27 9. 27 9.27 12. 70 12. 70 12. 70 15. 09 18. 26 21. 44 25. 40 28. 58 25. 40
12 323.9 3. 96 4. 57 6. 35 8. 38 9. 53 9. 53 10. 31 14. 27 12. 70 12. 70 17. 48 21. 44 25. 40 28. 58 33. 32 25. 40
14 355. 6 3. 96 4. 78 7. 92 9. 53 — 9. 53 11. 13 15. 09 — 12. 70 19. 05 23. 83 27. 79 31. 75 35. 71 —
16 406. 4 4. 19 4. 78 7. 92 9. 53 —— 9. 53 12. 70 16. 66 —— 12. 70 21. 44 26. 19 30. 96 36. 53 40. 49 ——
18 457. 2 4. 19 4. 78 7. 92 11. 13 —— 9. 53 14. 27 19. 05 —— 12. 70 23. 83 29. 36 34. 96 39. 67 45. 24 ——
20 508. 0 4. 78 5. 54 9. 53 12. 70 — 9. 53 15. 09 20. 62 — 12. 70 26. 19 32. 54 38. 10 44. 45 50. 01 —
22 558. 8 4. 78 5. 54 9. 53 12. 70 — 9. 53 — 22. 23 — 12. 70 28. 58 34. 93 41. 28 47. 63 53. 98 —
24 609. 6 5. 54 6. 35 9. 53 14. 27 —— 9. 53 17. 48 24. 61 —— 12. 70 30. 96 38. 89 46. 02 52. 37 59. 54 ——
26 660.4 —— —— 12. 70 —— —— 9. 53 —— —— —— 12. 70 —— —— —— —— —— ——
28 711.2 — — 12. 70 15. 88 — 9. 53 — — — 12. 70 — — — — — —
30 762. 0 6. 35 7. 92 12. 70 15. 88 — 9. 53 — — — 12. 70 — — — — — —
32 812. 8 —— —— 12. 70 15. 88 —— 9. 53 17. 48 —— —— 12. 70 —— —— —— —— —— ——
34 863. 6 —— —— 12. 70 15. 88 —— 9. 53 17. 48 —— —— 12. 70 —— —— —— —— —— ——
36 914. 4 — — 12. 70 15. 88 — 9. 53 17. 48 — — 12. 70 — — — — — —
38 965.2 — — — — — 9. 53 — — — 12. 70 — — — — — —
40 1016. 0 —— —— —— —— —— 9. 53 —— —— —— 12. 70 —— —— —— —— —— ——
42 1066. 8 —— —— —— —— —— 9. 53 —— —— —— 12. 70 —— —— —— —— —— ——
44 1117. 6 — — — — — 9. 53 — — — 12. 70 — — — — — —
46 1168.4 — — — — — 9. 53 — — — 12. 70 — — — — — —
48 1219. 2 — — — — — 9. 53 — — — 12. 70 — — — — — —



                                              Dimensions of Reducers



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 0




Nominal Pipe Size (NPS) Outside Diameter at Bevel Length, E [Note (1)] Limiting Wall Thickness for Length, E Length,E1
[Note (2)]
1/2“ 21.3 25 4.57 25
3/4” 26.7 25 3.81 25
1 33.4 38 4.57 38
1-1/4“ 42.2 38 4.83 38
1-1/2” 48.3 38 5.08 38
2 60.3 38 5.59 44
2-1/2“ 73.0 38 7.11 51
3 88.9 51 7.62 64
3-1/2” 101.6 64 8.13 76
4 114.3 64 8.64 76
5 141.3 76 9.65 89
6 168.3 89 10.92 102
8 219.1 102 12.70 127
10 273.0 127 12.70 152
12 323.8 152 12.70 178
14 355.6 165 12.70 191
16 406.4 178 12.70 203
18 457.0 203 12.70 229
20 508.0 229 12.70 254
22 559.0 254 12.70 254
24 610.0 267 12.70 305
26 660.0 267 　 　
28 711.0 267 　 　
30 762.0 267 　 　
32 813.0 267 　 　
34 864.0 267 　 　
36 914.0 267 　 　
38 965.0 305 　 　
40 1 016.0 305 　 　
42 1 067.0 305 　 　
44 1 118.0 343 　 　
46 1 168.0 343 　 　
48 1 219.0 343 　 　



Stainless steel is the abbreviation for stainless and acid resistant steel. Steel that is resistant to weak corrosive media such as air, steam, water, or has rust resistance is called stainless steel; And the steel grade that is resistant to chemical corrosion media (such as acid, alkali, salt, etc.) corrosion is called acid resistant steel.For the Stainless Steel pipefittings, the most common used material is SS304/304L, SS316/316L, DUPLEX SAF2507, SAF2205





Production Process



1. Raw material Receiving and Cutting



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 1



2. Material Identification



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 2



3. Elbows, Tees ,reducers, Caps, stub ends, kinds of pipefittings shape forming



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 3



4.  Material wedling process (welded elbows )



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 4



5. Heat Treatment for SS pipefittings



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 5



6. Shot Blast and cleaning



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 6



7. Surface checking



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 7



8. After Polished



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 8



9. stainless steel Pipefittings Material In  Stock



Seamless Duplex Stainless Steel Pipe Fittings SCH10S SCH40S SCH80S SCH160S 9



 Application/Usage



Low and middle pressure fluid pipeline,boiler, petroleum and natural gas industry, drilling,chemical industry, electric industry,shipbuilding,fertilizer equipment and pipeline, structure,petrochemical,pharmaceutical industry,etc.



Reference Standards



ASME B16.9 Specification for Butt Welded Fittings

ASME B16.9 specification is designed for butt welded fittings applied in industrial construction pipelines. Including elbow, tee, cross, cap, reducer, and etc.



Standard Scope

The standard includes specifications of NPS 1/2 to NPS 48 (DN15-DN1200) factory-made wrought butt-welded pipe fittings overall dimensions, tolerances ratings, test methods and markings.



Special Fittings

Special fittings here refer to special sizes, forms and tolerances that agreed between buyer and manufacturer.



Fabricated Fittings

Fabricated laterals and other fittings by circumferential or intersection welds are considered pipe fabrication could not apply this standard.



Units under ASME B16.9 shall be stated in both SI (Metric) and U.S. Customary units. Designation for size is NPS.



FAQ/ Customer Question and Answers



Q:Customer asked for butt weld fittings in A105:
A: Most common carbon steel buttweld fitting material is A234WPB. It is equivalent to A105 flanges, however there is no such thing as an A105 or A106 butt weld fitting. A106 Gr.B is for pipe grade. The A234WPB fittings are made from A106GR.B pipes. A105 is a material from Bar forged to be High pressure Fittings or Flange


Q: Customer requests “Normalized” butt weld fittings:
A: This is also a misconception since flanges are available in A105 and A105 N, where N stands for normalized.
However, there is no such thing as A234WPBN. Manufactures normalize their butt weld fittings was considered that normalized heat treating process was done, Espeically for the elbows and Tees
Customer needing “normalized” butt weld fittings should request WPL6 fittings which are high yield and are normalized as a standard procedure.


Q: Customer forgets to mention pipe schedule:
A: Buttweld fittings are sold as per pipe size but pipe schedule must be specified to match the ID of the fitting to the ID of the pipe. If no schedule is mentioned, we will assume a standard wall is requested.



Q: Customer forgets to mention welded or seamless butt weld fitting:
A: Butt weld fittings are available in both welded and seamless configuration. A seamless butt weld carbon steel or stainless steel fitting is made of seamless pipe and is generally more expensive.
Seamless pipe fittings are NOT common in sizes bigger than 12”. Welded pipe fittings are made of ERW welded carbon steel or stainless steel pipe. They are available in sizes ½” to 72” and are more affordable than seamless fittings.


Q: What does Short Radius (SR) or Long Radius (LR) means?
A: You will often hear SR45 elbow or LR45 elbow. The 45 or 90 refers to the angle of the bend for buttweld fitting to change the direction of flow.
A long radius elbow (LR 90 Elbow or LR 45 elbow) will have a pipe bend that will be 1.5 times the size of the pipe. So, a 6 inch LR 90 has bending radius that is 1.5 x nominal pipe size.


A short radius elbow (SR45 or SR90) has a pipe bend that is equal to the size of the fitting, so a 6” SR 45 has a bending radius that is 6” nominal pipe size.



Q: What is a 3R or 3D elbow pipe fitting?
A: First, the terms 3R or 3D are used synonymously. A 3R butt weld elbow has a bending radius that is 3 times the nominal pipe size. A 3R elbow is equal to 3D Elbows
