Polished SS304 Welded Stainless Steel Pipe Fitting For Food Industry

Brief Introduction

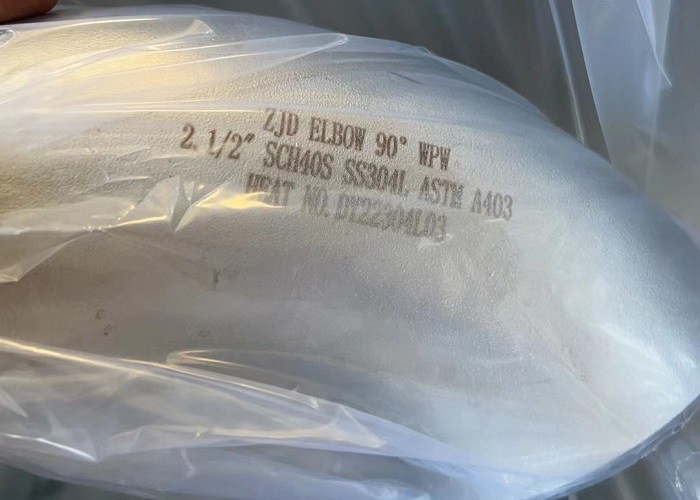

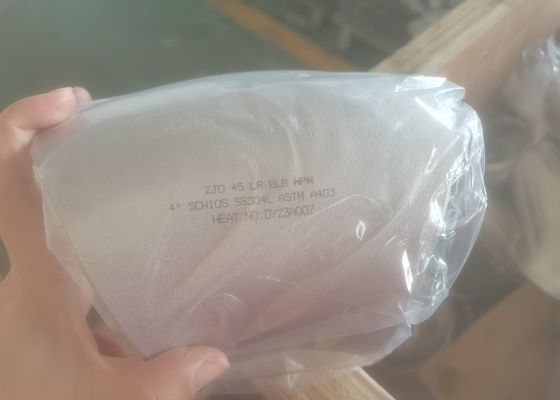

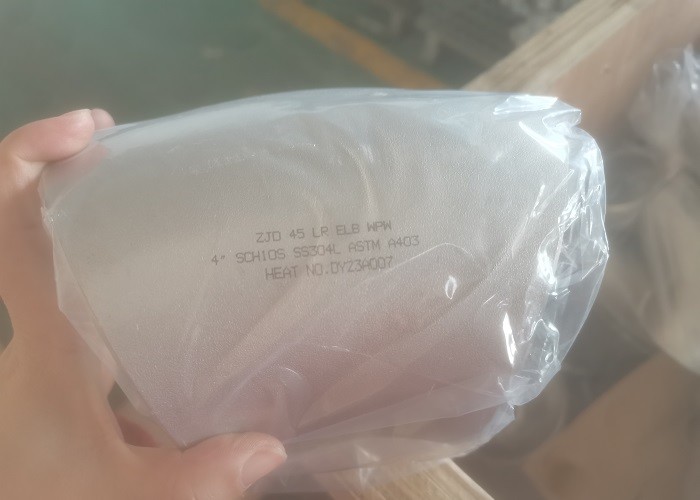

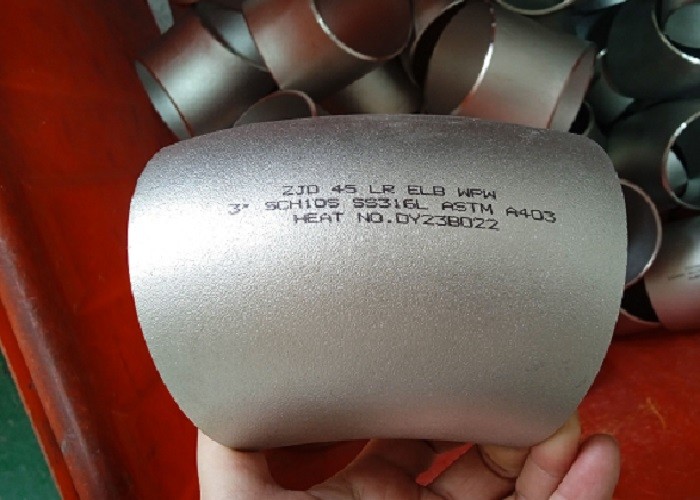

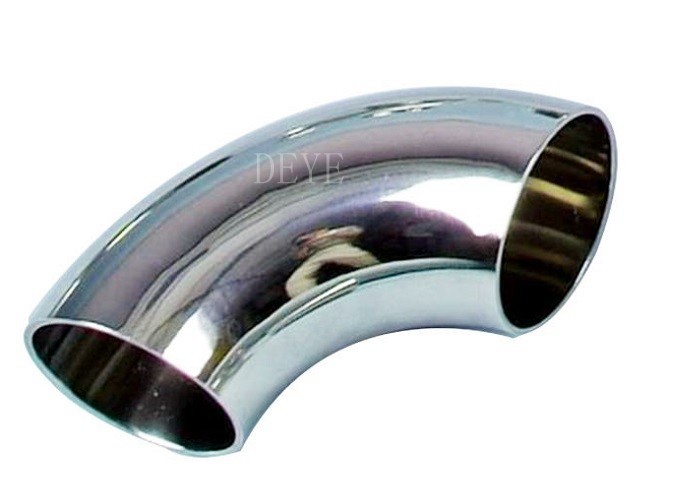

The stainless steel polished eblow: The polished steel pipe fittings will have a very smooth appearance, making it easier to clean and maintain, and the surface of the polished steel pipe fittings will form an invisible protective film, which can prevent corrosion and scaling on the surface of the pipe. The overall service life will be longer than that of the unpolished 304/316 pipe. After polishing, the product has good stability, while products without polishing become rougher and more prone to wear.

Products Information/Specification:

Features /Characteristics

• Buttweld fittings are pipe fittings used to change the pathway of a pipeline (elbows), reduce/increase the pipe bore size (reducers), branch (tees, cross) or blind a pipeline (butt weld cap)
• Buttweld fittings are available in multiple shapes (elbows, tees, reducers, crosses, caps, stub ends), material grades (carbon, high-yield carbon, low-alloy, stainless, duplex, and nickel alloys),
and dimensions (2 to 24 inches in seamless or welded, 26"-72" in welded ).
• The key specifications for buttweld fittings are the ASME B16.9 (carbon and alloy fittings) and the MSS SP 43 (that integrates ASME B16.9 for stainless steel, duplex, and nickel alloy BW fittings).
• butt weld pipe fittings are sold as SCH105S, SCH10S, SCH20S, SCH40S, STD, SCH40, SCH80S, SCH80, SCH160S, XXS
• Welded butt weld fittings are more common in stainless steel due to cost advantage. Sch 10S, SCH40S SS fittings are also more common in stainless steel butt weld fittings.
• Common material for butt weld fittings are A234 WPB, High Yield Carbon Steel, Stainless Steel 304 and 316 and Nickel Alloys.
• Welded pipe fittings in carbon steel and stainless steel are the joining components that make possible the assembly of valves, pipes and equipment onto the piping system.

Technology/ Technical Data Sheets

                                                                   Thickness List for pipefittings ANSI B16.9

Unit: mm

                                                                       Table 1 Dimensions of Long Radius Elbows

GENERAL NOTE: All dimensions are in millimeters.

                                                         Table 2  Dimensions of Long Radius Reducing Elbow

            Table 3 Dimensions of Long Radius Returns                Table 4 Dimensions of Short Radius Elbows

             Table 5 Dimensions of Short Radius 180-deg Returns             Table 6  Dimensions of 3D Elbow

Application/Usage

Pipe fittings are widely demanded for any piping and plumbing systems used in industrial and commercial applications. Fittings allow pipes to be joined or installed in the appropriate place and terminated or closed where necessary. Fittings are available in various shapes and sizes. They can be expensive, require time, and different materials and tools to install. They are an essential part of piping and plumbing systems. There are thousands of specialized fittings manufactured. Each type of pipe or tube requires its own type of fitting, but usually all pipe fittings share some common features. Pipe fittings are available everywhere where plumbing materials are sold.

Production Process

1. Raw material Receiving and Cutting

2.Material Identification

3. Elbows, Tees ,reducers, Caps, stub ends, kinds of pipefittings shape forming

4.  Material wedling process (welded elbows )

5. Heat Treatment for SS pipefittings

6. Shot Blast and cleaning

7. Surface checking

8. After Polished

9. stainless steel Pipefittings Material In  Stock

 Application/Usage

Low and middle pressure fluid pipeline,boiler, petroleum and natural gas industry, drilling,chemical industry, electric industry,shipbuilding,fertilizer equipment and pipeline, structure,petrochemical,pharmaceutical industry,etc.

FAQ/ Customer Question and Answers

Q:Customer asked for butt weld fittings in A105:
A: Most common carbon steel buttweld fitting material is A234WPB. It is equivalent to A105 flanges, however there is no such thing as an A105 or A106 butt weld fitting. A106 Gr.B is for pipe grade. The A234WPB fittings are made from A106GR.B pipes. A105 is a material from Bar forged to be High pressure Fittings or Flange

Q: Customer requests “Normalized” butt weld fittings:
A: This is also a misconception since flanges are available in A105 and A105 N, where N stands for normalized.
However, there is no such thing as A234WPBN. Manufactures normalize their butt weld fittings was considered that normalized heat treating process was done, Espeically for the elbows and Tees
Customer needing “normalized” butt weld fittings should request WPL6 fittings which are high yield and are normalized as a standard procedure.

Q: Customer forgets to mention pipe schedule:
A: Buttweld fittings are sold as per pipe size but pipe schedule must be specified to match the ID of the fitting to the ID of the pipe. If no schedule is mentioned, we will assume a standard wall is requested.

Q: Customer forgets to mention welded or seamless butt weld fitting:
A: Butt weld fittings are available in both welded and seamless configuration. A seamless butt weld carbon steel or stainless steel fitting is made of seamless pipe and is generally more expensive.
Seamless pipe fittings are NOT common in sizes bigger than 12”. Welded pipe fittings are made of ERW welded carbon steel or stainless steel pipe. They are available in sizes ½” to 72” and are more affordable than seamless fittings.

Q: What does Short Radius (SR) or Long Radius (LR) means?
A: You will often hear SR45 elbow or LR45 elbow. The 45 or 90 refers to the angle of the bend for buttweld fitting to change the direction of flow.
A long radius elbow (LR 90 Elbow or LR 45 elbow) will have a pipe bend that will be 1.5 times the size of the pipe. So, a 6 inch LR 90 has bending radius that is 1.5 x nominal pipe size.

A short radius elbow (SR45 or SR90) has a pipe bend that is equal to the size of the fitting, so a 6” SR 45 has a bending radius that is 6” nominal pipe size.

Q: What is a 3R or 3D elbow pipe fitting?
A: First, the terms 3R or 3D are used synonymously. A 3R butt weld elbow has a bending radius that is 3 times the nominal pipe size. A 3R elbow is equal to 3D Elbows

Our Service

1. Tehcnial support
2. Raw Material Quality control.
3. Inspection during the production time.
4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test
5. Test Report each shipment
4. Flexiable Delivery terms. EXW FOB CIF CFR DDP DDU
5. Fliexable payment Ways: LC. TT. DP
6. Customized Package inlcudes Logo. Cases Dimension .
7. 18 months quality Gurantee time.
9. Free replacement by air if any error founded
10. 24 hours to Feedback your questions
