High Pressure Screwed Stainless Steel Equal Tee With NPT Threaded
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | PF-TEE-F02 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD50 each pc as per different material |
| Packaging Details | cartons + ply-wooden cases |
| Delivery Time | 7 days for stock items |
| Payment Terms | L/C, , T/T, D/P |
| Supply Ability | 10000pcs each momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Screwed stainless steel equal tee,High Pressure stainless steel equal tee,NPT Threaded equal tee |
||
|---|---|---|---|
Product Description

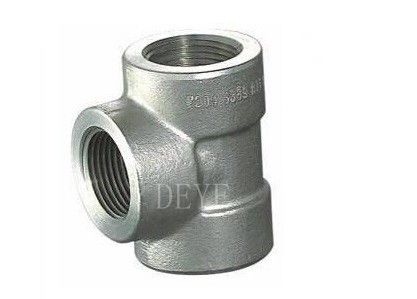

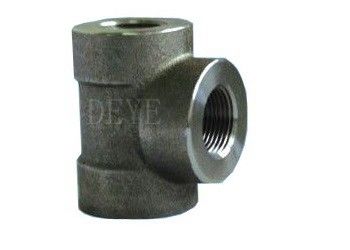

Stainless Steel High Pressure Screwed Equal Tee With Npt Threaded
Forged Steel Pipe Fitting:(Socket Weld Forged Pipe Fittings andThreaded Forged Steel Pipe Fittings)are machined from solid forgings. The quality of the fittings is critical in that they are designed to withstand higher pressures. In designing forged fitting, the most important factors are: uniformity of wall, wide bands, sharp threads properly chamfered and unrestricted flow.
Product Information/Product Description/Basis Information/Specification
| Specification | Forged stainless steel fittings: ASTM A182, ASTM SA182 S/W &SCRD (NPT / BSP / BSPT) | |
| Carbon steel forged fittings: A-105, S/W &SCRD (NPT / BSP / BSPT) | ||
| Mild Steel Forged Fitting: IS BS ASTM ANSI B16.11 S/W & SCRD | ||
| Nickel Alloy forged fittings: ASTM B366 S/W & SCRD | ||
| Non Ferrous metal forged fittings: IS BS ASTM S/W & SCRD | ||
| Forged Screwed-Threaded Street Elbow Dimension | ANSI B 16.11 | |
| Forged Screwed-Threaded Street Elbow Size | 1/4" NB TO 4" NB | |
| Forged Screwed-Threaded Street Elbow Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS | |
| Forged steel fittings Range | Coupling, Plug, Socket, Bushing, Elbow, Tee, Nipple, Union,Threading Outlet, Welding Outlet, Sockt Weld Outlet. | |
| Stainless Steel Forged Screwed-Threaded Street Elbow | ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L | |
| Duplex Steel Forged Screwed-Threaded Street Elbow | ASTM A 182 –F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S 31803, S 32205, S 32550, S 32750, S 32760 | |
| Carbon Steel Forged Screwed-Threaded Street Elbow | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 | |
| Alloy Steel Forged Screwed-Threaded Street Elbow | ASTM / ASME A 182 GR F5, F 9, F 11, F 12, F 22, F 91. | |
| Copper Alloys Forged Screwed-Threaded Street Elbow | ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500 | |
| ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30) | ||
| Nickel Alloy Forged Screwed-Threaded Street Elbow | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) | |
| Low temperature steel: | A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8 | |
| High performance steel: | A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70 | |
Features /Characteristics
•Strength and Durability
•Leak-Free Performance
•Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods.
This makes them ideal for systems that operate under high pressure conditions.
•Resistance to Corrosion
•Wide Range of Shapes and Sizes
•Quality and Consistency
•Longevity
Technology/ Technical Data Sheets
Dimension of socket welding Fittings for 90-Deg Elbow, Cross, Tee, 45deg elbow
Note: Average of socket wall thickness a round periphery shall be no less than listed values.
The minimum values are permitted in localized areas. (All above data are for millimeters )
Application/Usage
Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid
or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,
Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,
Aerospace and Defense HVAC and Piping
Material Grades:
Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical
and chemical values indicated correspond to the latest issued standard, although they are affected by modifications
year after year, so we suggest to use them only as a guide.
Chemical Composition
| ASTM Designation |
Analysis in % | ||||||||
| C | Mn | Si | Max. P | Max. S | Cr | Ni | Mo | ||
| A105 - 05 | |||||||||
| max. 0.35 | 0.60 - 1.05 | 0.10 - 0.35 | 0.035 | 0.04 | max. 0.3 3 4 | max. 0.4 3 4 | max. 0.12 3 | ||
| A182 - 07 | |||||||||
| Grades | F1 F5 F11 Cl. 1 |
max. 0.25 max. 0.15 0.05 - 0.15 |
0.60 - 0.90 0.30 - 0.60 0.30 - 0.60 |
0.15 - 0.35 max. 0.50 0.50 - 1.00 |
0.045 0.030 0.030 |
0.045 0.030 0.030 |
4.00 - 6.00 1.00 - 1.50 |
max. 0.50 | 0.44 - 0.65 0.44 - 0.65 0.44 - 0.65 |
| F11 Cl. 2 / Cl. 3 F22 Cl. 1 / Cl. 3 F304 1 |
0.10 - 0.20 0.05 - 0.15 max. 0.08 |
0.30 - 0.80 0.30 - 0.60 max. 2.00 |
0.50 - 1.00 max. 0.5 max. 1.00 |
0.040 0.040 0.045 |
0.040 0.040 0.030 |
1.00 - 1.50 2.00 - 2.50 18.00 - 20.00 |
8.00 - 11.00 | 0.44 - 0.65 0.87 - 1.13 |
|
| F304 L 1 F316 1 F316L 1 F321 2 |
max. 0.030 max. 0.08 max. 0.030 max. 0.08 |
max. 2.00 max. 2.00 max. 2.00 max. 2.00 |
max. 1.00 max. 1.00 max. 1.00 max. 1.00 |
0.045 0.045 0.045 0.045 |
0.030 0.030 0.030 0.030 |
18.00 - 20.00 16.00 - 18.00 16.00 - 18.00 17.00 - 19.00 |
8.00 - 13.00 10.00 - 14.00 10.00 - 15.00 9.00 - 12.00 |
2.00 - 3.00 2.00 - 3.00 |
|
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 LF3 |
max. 0.30 max. 0.30 max. 0.30 max. 0.20 |
0.60 - 1.35 0.60 - 1.35 0.60 - 1.35 max. 0.90 |
0.15 - 0.30 0.15 - 0.30 0.20 - 0.35 0.20 - 0.35 |
0.035 0.035 0.035 0.035 |
0.040 0.040 0.040 0.040 |
max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 |
max. 0.4 3 max. 0.4 3 max. 0.4 3 3.3 - 3.7 |
max. 0.12 3 max. 0.12 3 max. 0.12 3 max. 0.12 3 |
| A694 - 03 | |||||||||
| Grades | F42 / F52 / F56 F60 / F65 / F70 | max. 0.26 | max. 1.4 | 0.15 - 0.35 | 0.025 | 0.025 | |||
PHYSICAL PROPERTIES
| ASTM Designatioin |
Tensile strength | Fluency limit Elongation in 50 mm. | Stress | Brinell | |||||
| Hardness (HB) |
|||||||||
| Ksi min. | MPa | Ksi min. | MPa | % min. | % min. | ||||
| A105 - 05 | |||||||||
| 70 | 485 | 36 | 250 | 22 | 30 | 187 max. | |||
| A182 - 07 | |||||||||
| Grades | F1 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 192 | |
| F5 | 70 | 485 | 40 | 275 | 20 | 35 | 143 - 217 | ||
| F11 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 45 | 121 - 174 | ||
| F11 Cl. 2 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 207 | ||
| F11 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | 156 - 207 | ||
| F22 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 35 | 170 max. | ||
| F22 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | |||
| F304 | 751 | 5151 | 30 | 205 | 30 | 50 | 156 - 207 | ||
| F304L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F316 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| F316L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F321 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 |
60 - 85 70 - 95 70 - 95 |
415 - 585 485 - 655 485 - 655 |
30 36 36 |
3 4 3 4 3 4 |
205 250 250 |
25 22 22 |
38 30 30 |
197 max. 197 max. 197 max. |
| LF3 Cl. 1 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| LF3 Cl. 2 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| A694 - 03 | |||||||||
| Grades | F42 | 60 | 415 | 42 | 290 | 20 | |||
| F52 | 66 | 455 | 52 | 360 | 20 | ||||
| F56 | 68 | 470 | 56 | 385 | 20 | ||||
| F60 | 75 | 515 | 60 | 415 | 20 | ||||
| F65 | 77 | 530 | 65 | 450 | 20 | ||||
| F70 | 82 | 565 | 70 | 485 | 18 | ||||
Products for shipment
Our Service
1. Technical support
2. Raw Material Quality control.
3. Inspection during the production time.
4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test
5. Test Report each shipment
4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU
5. Flexible payment Ways: LC. TT. DP
6. Customized Package includes Logo. Cases Dimension.
7. 18 months quality Guarantee time.
9. Free replacement by air if any error founded
10. 24 hours to Feedback your questions
