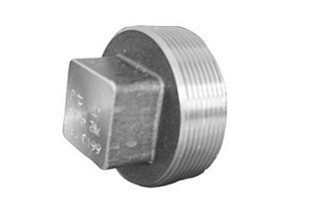

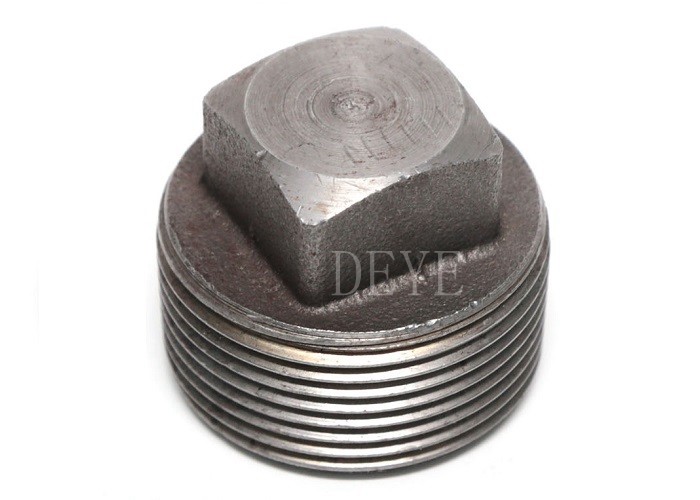

Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug

  • Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug
  • Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number PF-BS-F0-11
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD50 each pc as per different material
Packaging Details cartons + ply-wooden cases
Delivery Time 7 days for stock items
Payment Terms L/C, , T/T, D/P
Supply Ability 10000pcs each momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ANSI B16.11 Material A105, A105N. A350LF2, F22, SS316, SS304, DUPLEX SS, ALLOY STEEL
Rating 2000#, 3000#, 6000#, 9000# 2000LBS 3000LBS 6000LBS 9000LBS Connection Socket Welded SW Threaded NPT BSPT BSPP
Size 1/4"-4" Surface Black, Pickling, Anti-rust Oil
Highlight

SS304 High Pressure Pipe Fittings

,

SS316 High Pressure Pipe Fittings

,

A105 high pressure steel pipe fittings
Leave a Message
Product Description

Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug



Forged high pressure fittings under this Standard of ANSI B16.11 shall be designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.



Forged high pressure fittings are a type of pipe fittings that are manufactured through the forging process. The forging process involves shaping metal by applying localized compressive forces using dies and hammers or presses. This process results in a strong and dense structure with improved mechanical properties compared to fittings made through other methods such as casting.



Product Information/Product Description/Basis Information/Specification



Production Name ANSI B16.11 Forged pipefittings with Socket Welded ends or Threaded ends
Types 90deg Elbow, 45deg Elbows, Street elbow, Tee, cross, full Coupling, half coupling, square Cap, square plug, Hex. Nipples, Bushing, Union, Barrel Nipple, Boss, weldolet, socketolet, threadolet etc
Size Range 1/8" 3/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3” 4”
Threaded Types NPT ANSI B16.25 DIN BSPT
Material Carbon Steel: ASTM A105 ,A 182 Grade F 1, A 182 Grade F 5, A 182 Grade F 9, A 182 Grade F 11, f12, f22 A 350 Grade LF 1, A 350 Grade LF2, A 350 Grade LF 4, A 350 Grade LF6, LF8
Stainless Steel: F304(L), F316(L),SS321, SS347H, 904L DUPELX SS 2507, 2205, UNS31803, UNS32750 18Cr-10Ni-Tl 25Cr-20NI 22Cr-5Ni-3Mo-N 25Cr-7Ni-4Mo-N 24Cr-lONi-4Mo-V 25Cr-7Ni-3.5Mo-W-Cb 25Cr-7Ni-3.5Mo-N-Cu-W
Standard ANSI B16.11, MSS-SP 97, JIS, etc
Pressure 2000lbs, 3000lbs, 6000lbs, 9000lbs, etc



Features /Characteristics



•Strength and Durability

•Leak-Free Performance

•Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods.

This makes them ideal for systems that operate under high pressure conditions.

•Resistance to Corrosion

•Wide Range of Shapes and Sizes

•Quality and Consistency

•Longevity



  1. Strength and Durability: Forged pipe fittings are known for their superior strength and durability compared to fittings made through other manufacturing methods. The forging process creates a dense and compact structure that can handle high-pressure and high-temperature applications.
  2. Leak-Free Performance: The tight grain structure of forged fittings ensures a leak-free connection. The absence of porosity or voids in the metal reduces the risk of leaks or failures, making them suitable for critical applications where leakage is not acceptable.
  3. Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods. This makes them ideal for systems that operate under high pressure conditions.
  4. Resistance to Corrosion: Forged fittings are available in various materials such as carbon steel, stainless steel, and alloy steel, which offer excellent resistance to corrosion. The choice of material depends on the specific requirements of the application, ensuring compatibility with the transported fluid or gas.
  5. Wide Range of Shapes and Sizes: Forged pipe fittings are available in a wide range of shapes and sizes to meet different piping system requirements. Common types include elbows, tees, crosses, couplings, unions, caps, and plugs.
  6. Versatility: Forged fittings are suitable for use in various industries such as oil and gas, petrochemicals, power generation, and chemical processing. They can handle different types of fluids, gases, and temperatures, making them versatile for diverse applications.
  7. Quality and Consistency: Due to the controlled forging process, forged pipe fittings exhibit consistent quality and dimensional accuracy. This ensures that the fittings can be easily installed and provide a reliable connection within the piping system.
  8. Longevity: With their robust construction and resistance to wear and tear, forged fittings offer a longer service life compared to other types of fittings. Proper installation, maintenance, and adherence to recommended operating conditions can further enhance their longevity.
Technology/ Technical Data Sheets



Forged Threaded Plugs and Bushing

Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug 0



General Note: Dimensions are in millimeters.



Application/Usage



Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid

or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,

Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,

Aerospace and Defense HVAC and Piping



Material Grades:



Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical

and chemical values indicated correspond to the latest issued standard, although they are affected by modifications

year after year, so we suggest to use them only as a guide.



                                                        Chemical Composition



ASTM
Designation		 Analysis in %
C Mn Si Max. P Max. S Cr Ni Mo
A105 - 05
    max. 0.35 0.60 - 1.05 0.10 - 0.35 0.035 0.04 max. 0.3 3 4 max. 0.4 3 4 max. 0.12 3
A182 - 07
Grades F1 F5
F11 Cl. 1		 max. 0.25
max. 0.15
0.05 - 0.15		 0.60 - 0.90
0.30 - 0.60
0.30 - 0.60		 0.15 - 0.35
max. 0.50
0.50 - 1.00		 0.045
0.030
0.030		 0.045
0.030
0.030		 4.00 - 6.00
1.00 - 1.50		 max. 0.50 0.44 - 0.65
0.44 - 0.65
0.44 - 0.65
F11 Cl. 2 / Cl. 3
F22 Cl. 1 / Cl. 3
F304 1		 0.10 - 0.20
0.05 - 0.15
max. 0.08		 0.30 - 0.80
0.30 - 0.60
max. 2.00		 0.50 - 1.00
max. 0.5
max. 1.00		 0.040
0.040
0.045		 0.040
0.040
0.030		 1.00 - 1.50
2.00 - 2.50
18.00 - 20.00		 8.00 - 11.00 0.44 - 0.65
0.87 - 1.13
F304 L 1
F316 1
F316L 1
F321 2		 max. 0.030
max. 0.08
max. 0.030
max. 0.08		 max. 2.00
max. 2.00
max. 2.00
max. 2.00		 max. 1.00
max. 1.00
max. 1.00
max. 1.00		 0.045
0.045
0.045
0.045		 0.030
0.030
0.030
0.030		 18.00 - 20.00
16.00 - 18.00
16.00 - 18.00
17.00 - 19.00		 8.00 - 13.00
10.00 - 14.00
10.00 - 15.00
9.00 - 12.00		 2.00 - 3.00
2.00 - 3.00
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2 LF3		 max. 0.30
max. 0.30
max. 0.30
max. 0.20		 0.60 - 1.35
0.60 - 1.35
0.60 - 1.35
max. 0.90		 0.15 - 0.30
0.15 - 0.30
0.20 - 0.35
0.20 - 0.35		 0.035
0.035
0.035
0.035		 0.040
0.040
0.040
0.040		 max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4		 max. 0.4 3
max. 0.4 3
max. 0.4 3
3.3 - 3.7		 max. 0.12 3
max. 0.12 3
max. 0.12 3
max. 0.12 3
A694 - 03
Grades F42 / F52 / F56 F60 / F65 / F70 max. 0.26 max. 1.4 0.15 - 0.35 0.025 0.025 　 　 　





                                                       PHYSICAL PROPERTIES



ASTM
Designatioin		 Tensile strength Fluency limit Elongation in 50 mm. Stress Brinell
Hardness
(HB)
Ksi min. MPa Ksi min. MPa % min. % min.
A105 - 05
　 　 70 485 36 250 22 30 187 max.
A182 - 07
Grades F1 70 485 40 275 20 30 143 - 192
F5 70 485 40 275 20 35 143 - 217
F11 Cl. 1 60 415 30 205 20 45 121 - 174
F11 Cl. 2 70 485 40 275 20 30 143 - 207
F11 Cl. 3 75 515 45 310 20 30 156 - 207
F22 Cl. 1 60 415 30 205 20 35 170 max.
F22 Cl. 3 75 515 45 310 20 30 　
F304 751 5151 30 205 30 50 156 - 207
F304L 702 4852 25 170 30 50 　
F316 751 5151 30 205 30 50 　
F316L 702 4852 25 170 30 50
F321 751 5151 30 205 30 50
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2		 60 - 85
70 - 95
70 - 95		 415 - 585
485 - 655
485 - 655		 30
36
36		 3 4
3 4
3 4		 205
250
250		 25
22
22		 38
30
30		 197 max.
197 max.
197 max.
LF3 Cl. 1 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
LF3 Cl. 2 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
A694 - 03
Grades F42 60 415 42 290 20 　 　
F52 66 455 52 360 20
F56 68 470 56 385 20
F60 75 515 60 415 20 　 　
F65 77 530 65 450 20
F70 82 565 70 485 18

Products for shipment



Stainless Steel 316 304 High Pressure Pipe Fittings With Square Plug 1



Our Service



1. Technical support

2. Raw Material Quality control.

3. Inspection during the production time.

4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test

5. Test Report each shipment

4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU

5. Flexible payment Ways: LC. TT. DP

6. Customized Package includes Logo. Cases Dimension.

7. 18 months quality Guarantee time.

9. Free replacement by air if any error founded

10. 24 hours to Feedback your questions

Tags:

Forged High Pressure Pipe Fittings

3000lbs High Pressure Pipe Fittings

Forged ss end caps
