3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT

  • 3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT
  • 3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT
  • 3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number PF-NP-F05
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD50 each pc as per different material
Packaging Details cartons + ply-wooden cases
Delivery Time 7 days for stock items
Payment Terms L/C, , T/T, D/P
Supply Ability 10000pcs each momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Forged High Pressure Pipe Fittings

,

3M High Pressure Pipe Fittings

,

BSPT hex nipple
Leave a Message
Product Description

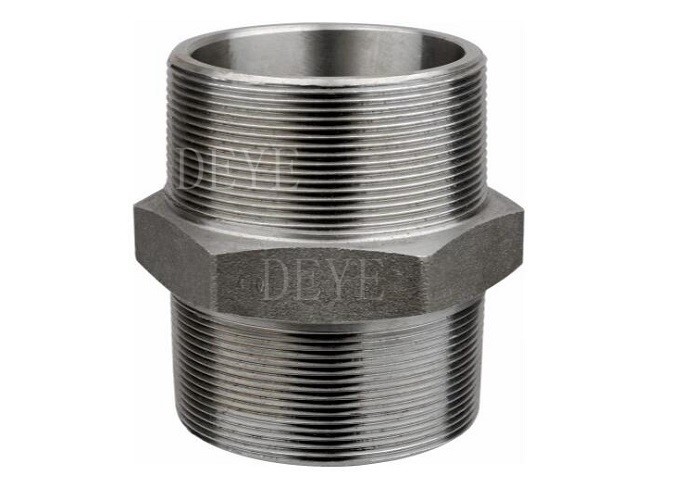

3M Forged High Pressure Pipe Fittings Hex Nipple With Npt Bspt



High Quality ASME B16.11 Forged Screw-Threaded Nipples. A Hex. nipple is a length of hex.pipe with male threads on both ends. They are used to fit straight end hose or pipe. These Threaded Pipe Nippple are available in variousshapes, size, specification & thickness as per the clientsrequirments. These Nipples are widely used in variousapplication industry such as oil refineries, chemical processingpetrochemical, cement indutry etc.



Product Information/Product Description/Basis Information/Specification



Forged Hex. Nipple standard

ASME: ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASME B16.11 Forged threaded fittings:90-deg elbow,45-deg elbow,tee,cross,coupling,half-coupling,cap,square head plug,hex head plug,round head plug,hex head bushing,flush bushing,street elbows
ASME B16.11 Fogred socket weld fittings:90-deg elbow,45-deg elbow,tee,cross,coupling,half-coupling,cap
MSS SP83 Steel Pipe Unions(socket welding and threaded end)
MSS SP95 swage nipples,bull plug(ends may be threaded,beveled,plain)
MSS SP79 socket welding reducer inserts
MSS SP97 weldolets,threadolets,sockolets,flangolets,elbolet,sweepolets,saddle,nipolets,brazolets,latrolets,insertolets



Material Grades



Carbon Steel ASME B16.11 Forged Threaded Reducing Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60,

X 65 & X 70.  ASTM / ASME A 691 GR A, B & C



ASME B16.11 Stainless Steel Forged Threaded Hex Nipple :

ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347,

F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L



Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Hex Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.



ASME B16.11 Alloy Steel Forged Threaded Hex Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR,

2 1/4 CR, 5 CR



ASME B16.11 Copper Alloy Steel Forged Threaded Reducing Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000,

C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Nickel Alloy Forged Threaded ASME B16.11 Reducing Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) ,

UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) ,

UNS 10276 (HASTELLOY C 276)



Features /Characteristics



•Strength and Durability

•Leak-Free Performance

•Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods.

This makes them ideal for systems that operate under high pressure conditions.

•Resistance to Corrosion

•Wide Range of Shapes and Sizes

•Quality and Consistency

•Longevity



Technology/ Technical Data Sheets



Dimension of socket welding Fittings for 90-Deg Elbow, Cross, Tee, 45deg elbow

3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 0

Note: Average of socket wall thickness a round periphery shall be no less than listed values.

The minimum values are permitted in localized areas. (All above data are for millimeters )



Application/Usage



Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid

or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,

Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,

Aerospace and Defense HVAC and Piping



Material Specification Details



Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical

and chemical values indicated correspond to the latest issued standard, although they are affected by modifications

year after year, so we suggest to use them only as a guide.



                                                        Chemical Composition



ASTM
Designation		 Analysis in %
C Mn Si Max. P Max. S Cr Ni Mo
A105 - 05
    max. 0.35 0.60 - 1.05 0.10 - 0.35 0.035 0.04 max. 0.3 3 4 max. 0.4 3 4 max. 0.12 3
A182 - 07
Grades F1 F5
F11 Cl. 1		 max. 0.25
max. 0.15
0.05 - 0.15		 0.60 - 0.90
0.30 - 0.60
0.30 - 0.60		 0.15 - 0.35
max. 0.50
0.50 - 1.00		 0.045
0.030
0.030		 0.045
0.030
0.030		 4.00 - 6.00
1.00 - 1.50		 max. 0.50 0.44 - 0.65
0.44 - 0.65
0.44 - 0.65
F11 Cl. 2 / Cl. 3
F22 Cl. 1 / Cl. 3
F304 1		 0.10 - 0.20
0.05 - 0.15
max. 0.08		 0.30 - 0.80
0.30 - 0.60
max. 2.00		 0.50 - 1.00
max. 0.5
max. 1.00		 0.040
0.040
0.045		 0.040
0.040
0.030		 1.00 - 1.50
2.00 - 2.50
18.00 - 20.00		 8.00 - 11.00 0.44 - 0.65
0.87 - 1.13
F304 L 1
F316 1
F316L 1
F321 2		 max. 0.030
max. 0.08
max. 0.030
max. 0.08		 max. 2.00
max. 2.00
max. 2.00
max. 2.00		 max. 1.00
max. 1.00
max. 1.00
max. 1.00		 0.045
0.045
0.045
0.045		 0.030
0.030
0.030
0.030		 18.00 - 20.00
16.00 - 18.00
16.00 - 18.00
17.00 - 19.00		 8.00 - 13.00
10.00 - 14.00
10.00 - 15.00
9.00 - 12.00		 2.00 - 3.00
2.00 - 3.00
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2 LF3		 max. 0.30
max. 0.30
max. 0.30
max. 0.20		 0.60 - 1.35
0.60 - 1.35
0.60 - 1.35
max. 0.90		 0.15 - 0.30
0.15 - 0.30
0.20 - 0.35
0.20 - 0.35		 0.035
0.035
0.035
0.035		 0.040
0.040
0.040
0.040		 max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4		 max. 0.4 3
max. 0.4 3
max. 0.4 3
3.3 - 3.7		 max. 0.12 3
max. 0.12 3
max. 0.12 3
max. 0.12 3
A694 - 03
Grades F42 / F52 / F56 F60 / F65 / F70 max. 0.26 max. 1.4 0.15 - 0.35 0.025 0.025 　 　 　





                                                       PHYSICAL PROPERTIES



ASTM
Designatioin		 Tensile strength Fluency limit Elongation in 50 mm. Stress Brinell
Hardness
(HB)
Ksi min. MPa Ksi min. MPa % min. % min.
A105 - 05
　 　 70 485 36 250 22 30 187 max.
A182 - 07
Grades F1 70 485 40 275 20 30 143 - 192
F5 70 485 40 275 20 35 143 - 217
F11 Cl. 1 60 415 30 205 20 45 121 - 174
F11 Cl. 2 70 485 40 275 20 30 143 - 207
F11 Cl. 3 75 515 45 310 20 30 156 - 207
F22 Cl. 1 60 415 30 205 20 35 170 max.
F22 Cl. 3 75 515 45 310 20 30 　
F304 751 5151 30 205 30 50 156 - 207
F304L 702 4852 25 170 30 50 　
F316 751 5151 30 205 30 50 　
F316L 702 4852 25 170 30 50
F321 751 5151 30 205 30 50
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2		 60 - 85
70 - 95
70 - 95		 415 - 585
485 - 655
485 - 655		 30
36
36		 3 4
3 4
3 4		 205
250
250		 25
22
22		 38
30
30		 197 max.
197 max.
197 max.
LF3 Cl. 1 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
LF3 Cl. 2 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
A694 - 03
Grades F42 60 415 42 290 20 　 　
F52 66 455 52 360 20
F56 68 470 56 385 20
F60 75 515 60 415 20 　 　
F65 77 530 65 450 20
F70 82 565 70 485 18



B16.11 Forged high pressure fittings Production Procedure



Raw Material A105& Stainless-steel bars for forged fittings



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 13M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 2



Cutting the bars to be proper length for forging



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 3



Forging Workshop



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 4

3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 5



Stocks of the raw pieces without marching



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 6



Sand Blast to clean and smooth the surface



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 73M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 8

Machining process

3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 9



Test the threaded to meet standards



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 10



Marking the specification and logo on forged fittings



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 11

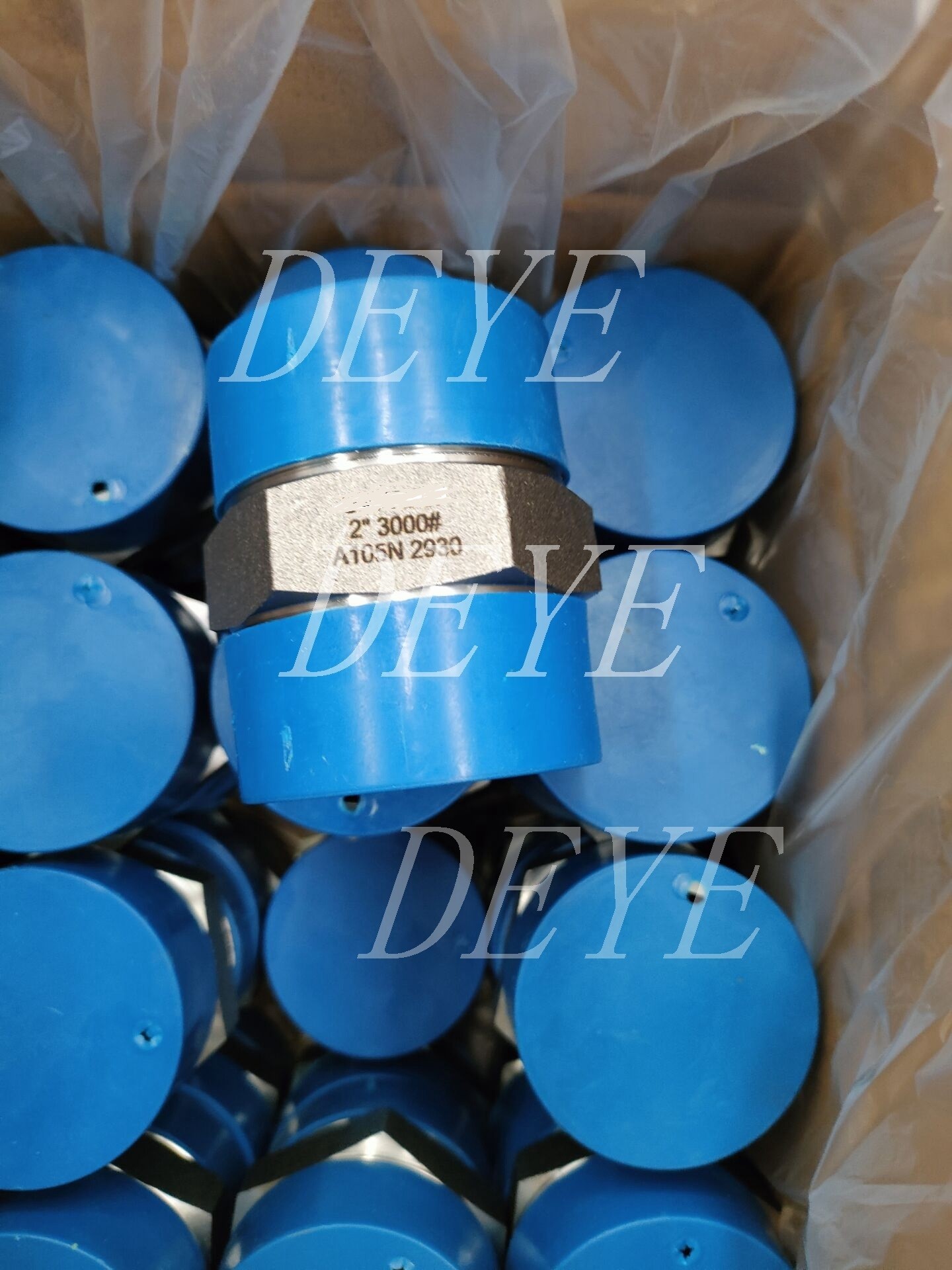

Finished Products and Package



3M Forged High Pressure Pipe Fittings Hex Nipple With NPT BSPT 12



Our Service



1. Technical support

2. Raw Material Quality control.

3. Inspection during the production time.

4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test

5. Test Report each shipment

4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU

5. Flexible payment Ways: LC. TT. DP

6. Customized Package includes Logo. Cases Dimension.

7. 18 months quality Guarantee time.

9. Free replacement by air if any error founded

10. 24 hours to Feedback your questions

Tags:

Forged High Pressure Pipe Fittings

3000lbs High Pressure Pipe Fittings

Forged ss end caps
