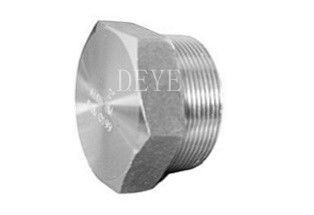

2000# 3000# High Pressure Pipe Fittings High Pressure Plug With Threaded Connection

  • 2000# 3000# High Pressure Pipe Fittings High Pressure Plug With Threaded Connection
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number PF-BS-F0-10
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD50 each pc as per different material
Packaging Details cartons + ply-wooden cases
Delivery Time 7 days for stock items
Payment Terms L/C, , T/T, D/P
Supply Ability 10000pcs each momth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

3000# High Pressure Pipe Fittings

,

2000# High Pressure Pipe Fittings

,

ANSI B16.11 high pressure plug
Leave a Message
Product Description

2000# 3000# 6000# High Pressure Hex Plug With Threaded NPT BSPP BSPT



Threaded and socket-weld is the common types for the forged fittings connection.

Threaded end has male and female types for connected – Male is for such street elbow, plug, bushing, nipple etc.

Female is for elbow, tee, coupling etc. Deye Piping can offer both NPT and BSP threaded – NPT is default screw if there is

no specific.Socket-weld is one pipe end to insert the fittings for welding, SW end is for all the fittings except threaded.



Product Information/Product Description/Basis Information/Specification



Forged Steel Fitting
Name 45D/90D Elbow, Street Elbow, Tee, Cross, Cap, Coupling, Half Coupling, Plug, Bushing, Unin, Hexagon Nipple Outlet, Weldolet, Threadolet, Sockolet, Bull plug, Reducer Insert, Pipe Nipple, Swage Nipple
H.S. Code 7307920000
Pressure Threaded Type 2000LBS, 3000LBS, 6000LBS
Socket-Weld Type 3000LBS, 6000LBS, 9000LBS
Surface Finish Anti-Rust Oil,Hot Dipped Galvanised,Customized.
Technology Forged
Standard American Standard ANSI B16.11, MSS SP 97, MSS SP 95, MSS SP 83, ASTM A733
British Standard BS3799
Japan Standard JIS B2316
Size 1/8'' - 6'' (DN6 - DN150)
Wall Thickness SCH5S,SCH10S,SCH10,SCH40S,STD,XS,XXS,SCH20,SCH30,SCH40,SCH60,SCH80,SCH160,XXS
Materials Mild/Carbon Steel A234 WPB/WPC,A105,A105N, A350LF2, F11, F22
Stainless Steel A403 WP304,304(L),316(L),321,310S,347H,316Ti,317(L),F904L,1.4301,1.4307,1.4401,1.4571,1.4541
Duplex Stainless Steel UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760,1.4462,1.4410,1.4501
Alloy Steel Alloy20,A860 WPHY 42-46-52-60-65-70





Features /Characteristics



  1. Strength and Durability: Forged pipe fittings are known for their superior strength and durability compared to fittings made through other manufacturing methods. The forging process creates a dense and compact structure that can handle high-pressure and high-temperature applications.
  2. Leak-Free Performance: The tight grain structure of forged fittings ensures a leak-free connection. The absence of porosity or voids in the metal reduces the risk of leaks or failures, making them suitable for critical applications where leakage is not acceptable.
  3. Pressure Ratings: Forged pipe fittings generally have higher pressure ratings compared to fittings made by other methods. This makes them ideal for systems that operate under high pressure conditions.
  4. Resistance to Corrosion: Forged fittings are available in various materials such as carbon steel, stainless steel, and alloy steel, which offer excellent resistance to corrosion. The choice of material depends on the specific requirements of the application, ensuring compatibility with the transported fluid or gas.
  5. Wide Range of Shapes and Sizes: Forged pipe fittings are available in a wide range of shapes and sizes to meet different piping system requirements. Common types include elbows, tees, crosses, couplings, unions, caps, and plugs.
  6. Versatility: Forged fittings are suitable for use in various industries such as oil and gas, petrochemicals, power generation, and chemical processing. They can handle different types of fluids, gases, and temperatures, making them versatile for diverse applications.
  7. Quality and Consistency: Due to the controlled forging process, forged pipe fittings exhibit consistent quality and dimensional accuracy. This ensures that the fittings can be easily installed and provide a reliable connection within the piping system.
  8. Longevity: With their robust construction and resistance to wear and tear, forged fittings offer a longer service life compared to other types of fittings. Proper installation, maintenance, and adherence to recommended operating conditions can further enhance their longevity.
Technology/ Technical Data Sheets



Forged Threaded Plugs and Bushing

2000# 3000# High Pressure Pipe Fittings High Pressure Plug With Threaded Connection 0



Application/Usage



Oil and Gas Industry: Forged high pressure fittings are widely used in upstream, midstream and downstream applications in oil and gas. They are suitable for high pressure pipelines, oil and gas production facilities, refineries and petrochemical plants.



Power Generation: Forged parts are used in power plants in the conventional and renewable energy sectors. They are used in high pressure steam and water systems, boiler piping, turbine control systems and other power generating equipment.



Chemical Processing: Forged fittings are critical in chemical processing plants due to their resistance to corrosion and high pressure. They are used in pipelines carrying corrosive chemicals, acids, solvents and other corrosive fluids.



Pharmaceutical industry: Forged high-pressure fittings are used in pharmaceutical facilities where high pressures are required for various processes including fluid transfer, purification and sterilization.



Water Treatment: Forged fittings are used in high pressure water treatment and distribution systems. They ensure that piping and connections can handle the water pressure required in applications such as desalination plants, water treatment plants and pumping stations.



Mining and Construction: Mining operations require high-pressure piping, especially when transporting materials and slurries. Forged fittings are used in mining and construction projects involving high pressure fluid, mud or compressed air systems.



Aerospace and Defense: Forged fittings find application in aerospace and defense, especially in high-pressure hydraulic systems for aircraft, missiles, and other defense-related equipment.



HVAC and Piping: High pressure forged fittings are used in commercial and industrial HVAC (heating, ventilation and air conditioning) systems. They provide reliable connections for high pressure refrigerant, chilled water and steam distribution.



Material Grades:



Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical

and chemical values indicated correspond to the latest issued standard, although they are affected by modifications

year after year, so we suggest to use them only as a guide.



                                                        Chemical Composition



ASTM
Designation		 Analysis in %
C Mn Si Max. P Max. S Cr Ni Mo
A105 - 05
    max. 0.35 0.60 - 1.05 0.10 - 0.35 0.035 0.04 max. 0.3 3 4 max. 0.4 3 4 max. 0.12 3
A182 - 07
Grades F1 F5
F11 Cl. 1		 max. 0.25
max. 0.15
0.05 - 0.15		 0.60 - 0.90
0.30 - 0.60
0.30 - 0.60		 0.15 - 0.35
max. 0.50
0.50 - 1.00		 0.045
0.030
0.030		 0.045
0.030
0.030		 4.00 - 6.00
1.00 - 1.50		 max. 0.50 0.44 - 0.65
0.44 - 0.65
0.44 - 0.65
F11 Cl. 2 / Cl. 3
F22 Cl. 1 / Cl. 3
F304 1		 0.10 - 0.20
0.05 - 0.15
max. 0.08		 0.30 - 0.80
0.30 - 0.60
max. 2.00		 0.50 - 1.00
max. 0.5
max. 1.00		 0.040
0.040
0.045		 0.040
0.040
0.030		 1.00 - 1.50
2.00 - 2.50
18.00 - 20.00		 8.00 - 11.00 0.44 - 0.65
0.87 - 1.13
F304 L 1
F316 1
F316L 1
F321 2		 max. 0.030
max. 0.08
max. 0.030
max. 0.08		 max. 2.00
max. 2.00
max. 2.00
max. 2.00		 max. 1.00
max. 1.00
max. 1.00
max. 1.00		 0.045
0.045
0.045
0.045		 0.030
0.030
0.030
0.030		 18.00 - 20.00
16.00 - 18.00
16.00 - 18.00
17.00 - 19.00		 8.00 - 13.00
10.00 - 14.00
10.00 - 15.00
9.00 - 12.00		 2.00 - 3.00
2.00 - 3.00
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2 LF3		 max. 0.30
max. 0.30
max. 0.30
max. 0.20		 0.60 - 1.35
0.60 - 1.35
0.60 - 1.35
max. 0.90		 0.15 - 0.30
0.15 - 0.30
0.20 - 0.35
0.20 - 0.35		 0.035
0.035
0.035
0.035		 0.040
0.040
0.040
0.040		 max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4
max. 0.3 3 4		 max. 0.4 3
max. 0.4 3
max. 0.4 3
3.3 - 3.7		 max. 0.12 3
max. 0.12 3
max. 0.12 3
max. 0.12 3
A694 - 03
Grades F42 / F52 / F56 F60 / F65 / F70 max. 0.26 max. 1.4 0.15 - 0.35 0.025 0.025 　 　 　





                                                       PHYSICAL PROPERTIES



ASTM
Designatioin		 Tensile strength Fluency limit Elongation in 50 mm. Stress Brinell
Hardness
(HB)
Ksi min. MPa Ksi min. MPa % min. % min.
A105 - 05
　 　 70 485 36 250 22 30 187 max.
A182 - 07
Grades F1 70 485 40 275 20 30 143 - 192
F5 70 485 40 275 20 35 143 - 217
F11 Cl. 1 60 415 30 205 20 45 121 - 174
F11 Cl. 2 70 485 40 275 20 30 143 - 207
F11 Cl. 3 75 515 45 310 20 30 156 - 207
F22 Cl. 1 60 415 30 205 20 35 170 max.
F22 Cl. 3 75 515 45 310 20 30 　
F304 751 5151 30 205 30 50 156 - 207
F304L 702 4852 25 170 30 50 　
F316 751 5151 30 205 30 50 　
F316L 702 4852 25 170 30 50
F321 751 5151 30 205 30 50
A350 - 04
Grades LF1
LF2 Cl. 1
LF2 Cl. 2		 60 - 85
70 - 95
70 - 95		 415 - 585
485 - 655
485 - 655		 30
36
36		 3 4
3 4
3 4		 205
250
250		 25
22
22		 38
30
30		 197 max.
197 max.
197 max.
LF3 Cl. 1 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
LF3 Cl. 2 70 - 95 485 - 655 37.5 3 4 260 22 35 197 max.
A694 - 03
Grades F42 60 415 42 290 20 　 　
F52 66 455 52 360 20
F56 68 470 56 385 20
F60 75 515 60 415 20 　 　
F65 77 530 65 450 20
F70 82 565 70 485 18



Finished Products for shipment



2000# 3000# High Pressure Pipe Fittings High Pressure Plug With Threaded Connection 1



Our Service



1. Technical support

2. Raw Material Quality control.

3. Inspection during the production time.

4. Final Test includes Surface, Dimension, PT Test, RT test, ultrasonic Test

5. Test Report each shipment

4. Flexible Delivery terms. EXW FOB CIF CFR DDP DDU

5. Flexible payment Ways: LC. TT. DP

6. Customized Package includes Logo. Cases Dimension.

7. 18 months quality Guarantee time.

9. Free replacement by air if any error founded

10. 24 hours to Feedback your questions
