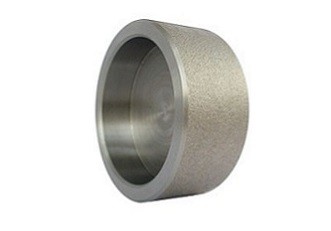

3000lbs 6000lbs Forged SS End Caps With ANSI B16.11 SW
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | PF-BS-F12 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD50 each pc as per different material |
| Packaging Details | cartons + ply-wooden cases |
| Delivery Time | 7 days for stock items |
| Payment Terms | L/C, , T/T, D/P |
| Supply Ability | 10000pcs each momth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ANSI B16.11 | Material | A105, A105N, A350LF2, F22, SS316, SS304, DUPLEX SS |
|---|---|---|---|
| Pressure | 2000LBS 3000LBS 6000LBS 9000LBS | Connection | Socket Welded, SW, Thread, NPT, BSPT |
| Size | 1/4"-4" | Surface | Black, Pickling ,Anti-rust Oil |
| Highlight | Forged ss end caps,6000lbs ss end caps,3000lbs stainless steel end caps |
||
Product Description
3000lbs 6000lbs Forged SS High Fittings End Cpas With Ansi B16.11 SW
Forged fittings also named high pressure pipe fittings, they are forged steel pipe fittings, including threaded fittings (NPT fittings)
and socket-welding pipe fittings (SW fittings), which are commonly for high pressure piping connections. Similar to butt-welding fittings,
forged fittings has various types, such as elbow, tee, coupling, plug, threaded, union, swage nipple, outlet branch fittings etc.
In the norm ASME B16.11, the fittings are up to NPS 4” only because they are threaded and socket-weld connected.
For large diameter, we can accept customized manufacturing as per drawings.
Product Information/Product Description/Basis Information/Specification
| Production Name | ANSI B16.11 Forged pipefittings with Socket Welded ends or Threaded ends |
| Types | 90deg Elbow, 45deg Elbows, Street elbow, Tee, cross, full Coupling, half coupling, square Cap, square plug, Hex. Nipples, Bushing, Union, Barrel Nipple, Boss, weldolet, socketolet, threadolet etc |
| Size Range | 1/8" 3/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3” 4” |
| Threaded Types | NPT ANSI B16.25 DIN BSPT |
| Material | Carbon Steel: ASTM A105 ,A 182 Grade F 1, A 182 Grade F 5, A 182 Grade F 9, A 182 Grade F 11, f12, f22 A 350 Grade LF 1, A 350 Grade LF2, A 350 Grade LF 4, A 350 Grade LF6, LF8 |
| Stainless Steel: F304(L), F316(L),SS321, SS347H, 904L DUPELX SS 2507, 2205, UNS31803, UNS32750 18Cr-10Ni-Tl 25Cr-20NI 22Cr-5Ni-3Mo-N 25Cr-7Ni-4Mo-N 24Cr-lONi-4Mo-V 25Cr-7Ni-3.5Mo-W-Cb 25Cr-7Ni-3.5Mo-N-Cu-W | |
| Standard | ANSI B16.11, MSS-SP 97, JIS, etc |
| Pressure | 2000lbs, 3000lbs, 6000lbs, 9000lbs, etc |
Features /Characteristics
•DURABLES
Selected raw materials, The quality of raw materials is the top priority. Strict quality control and test to make the raw
Material meets both requirements on Chemical composition and Mechanical Properties.
•PRECISION
Advanced CNC machining center and experienced technicians make the products in a precise dimension, less tolerance,
bigly improve the quality of originality.
•CUSTOMIZE
Professional Engineers can design the Forged high-pressure fittings in standard and non standard customized according
to customers' requirements both on specifications and materials
•STRICT
We have completed testing equipment’s here in our factory like spectrograph, hardness tester, Impact Test Equipment,
CMM, ect. All these testing dates will be recorded in the testing reports and sent to our customers for checking
Technology/ Technical Data Sheets
Socket Welding Forged Pipefittings for Couplings, Half-couplings and End Caps
General Note: Dimensions are in millimeters.
Application/Usage
Forged high pressure fittings are commonly used in a variety of industries and applications involving high pressure fluid
or gas systems. Some specific applications and uses of forged high pressure fittings include: Oil and Gas Industry,
Power Generation, Chemical Processing,Pharmaceutical industry, Water Treatment, Mining and Construction,
Aerospace and Defense HVAC and Piping
Material Specification Grades:
Forged high pressure pipefittings here mentioned below are only a few of those covered by B16.11 standard. The physical
and chemical values indicated correspond to the latest issued standard, although they are affected by modifications
year after year, so we suggest to use them only as a guide.
Chemical Composition
| ASTM Designation |
Analysis in % | ||||||||
| C | Mn | Si | Max. P | Max. S | Cr | Ni | Mo | ||
| A105 - 05 | |||||||||
| max. 0.35 | 0.60 - 1.05 | 0.10 - 0.35 | 0.035 | 0.04 | max. 0.3 3 4 | max. 0.4 3 4 | max. 0.12 3 | ||
| A182 - 07 | |||||||||
| Grades | F1 F5 F11 Cl. 1 |
max. 0.25 max. 0.15 0.05 - 0.15 |
0.60 - 0.90 0.30 - 0.60 0.30 - 0.60 |
0.15 - 0.35 max. 0.50 0.50 - 1.00 |
0.045 0.030 0.030 |
0.045 0.030 0.030 |
4.00 - 6.00 1.00 - 1.50 |
max. 0.50 | 0.44 - 0.65 0.44 - 0.65 0.44 - 0.65 |
| F11 Cl. 2 / Cl. 3 F22 Cl. 1 / Cl. 3 F304 1 |
0.10 - 0.20 0.05 - 0.15 max. 0.08 |
0.30 - 0.80 0.30 - 0.60 max. 2.00 |
0.50 - 1.00 max. 0.5 max. 1.00 |
0.040 0.040 0.045 |
0.040 0.040 0.030 |
1.00 - 1.50 2.00 - 2.50 18.00 - 20.00 |
8.00 - 11.00 | 0.44 - 0.65 0.87 - 1.13 |
|
| F304 L 1 F316 1 F316L 1 F321 2 |
max. 0.030 max. 0.08 max. 0.030 max. 0.08 |
max. 2.00 max. 2.00 max. 2.00 max. 2.00 |
max. 1.00 max. 1.00 max. 1.00 max. 1.00 |
0.045 0.045 0.045 0.045 |
0.030 0.030 0.030 0.030 |
18.00 - 20.00 16.00 - 18.00 16.00 - 18.00 17.00 - 19.00 |
8.00 - 13.00 10.00 - 14.00 10.00 - 15.00 9.00 - 12.00 |
2.00 - 3.00 2.00 - 3.00 |
|
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 LF3 |
max. 0.30 max. 0.30 max. 0.30 max. 0.20 |
0.60 - 1.35 0.60 - 1.35 0.60 - 1.35 max. 0.90 |
0.15 - 0.30 0.15 - 0.30 0.20 - 0.35 0.20 - 0.35 |
0.035 0.035 0.035 0.035 |
0.040 0.040 0.040 0.040 |
max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 max. 0.3 3 4 |
max. 0.4 3 max. 0.4 3 max. 0.4 3 3.3 - 3.7 |
max. 0.12 3 max. 0.12 3 max. 0.12 3 max. 0.12 3 |
| A694 - 03 | |||||||||
| Grades | F42 / F52 / F56 F60 / F65 / F70 | max. 0.26 | max. 1.4 | 0.15 - 0.35 | 0.025 | 0.025 | |||
PHYSICAL PROPERTIES
| ASTM Designatioin |
Tensile strength | Fluency limit Elongation in 50 mm. | Stress | Brinell | |||||
| Hardness (HB) |
|||||||||
| Ksi min. | MPa | Ksi min. | MPa | % min. | % min. | ||||
| A105 - 05 | |||||||||
| 70 | 485 | 36 | 250 | 22 | 30 | 187 max. | |||
| A182 - 07 | |||||||||
| Grades | F1 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 192 | |
| F5 | 70 | 485 | 40 | 275 | 20 | 35 | 143 - 217 | ||
| F11 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 45 | 121 - 174 | ||
| F11 Cl. 2 | 70 | 485 | 40 | 275 | 20 | 30 | 143 - 207 | ||
| F11 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | 156 - 207 | ||
| F22 Cl. 1 | 60 | 415 | 30 | 205 | 20 | 35 | 170 max. | ||
| F22 Cl. 3 | 75 | 515 | 45 | 310 | 20 | 30 | |||
| F304 | 751 | 5151 | 30 | 205 | 30 | 50 | 156 - 207 | ||
| F304L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F316 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| F316L | 702 | 4852 | 25 | 170 | 30 | 50 | |||
| F321 | 751 | 5151 | 30 | 205 | 30 | 50 | |||
| A350 - 04 | |||||||||
| Grades | LF1 LF2 Cl. 1 LF2 Cl. 2 |
60 - 85 70 - 95 70 - 95 |
415 - 585 485 - 655 485 - 655 |
30 36 36 |
3 4 3 4 3 4 |
205 250 250 |
25 22 22 |
38 30 30 |
197 max. 197 max. 197 max. |
| LF3 Cl. 1 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| LF3 Cl. 2 | 70 - 95 | 485 - 655 | 37.5 3 4 | 260 | 22 | 35 | 197 max. | ||
| A694 - 03 | |||||||||
| Grades | F42 | 60 | 415 | 42 | 290 | 20 | |||
| F52 | 66 | 455 | 52 | 360 | 20 | ||||
| F56 | 68 | 470 | 56 | 385 | 20 | ||||
| F60 | 75 | 515 | 60 | 415 | 20 | ||||
| F65 | 77 | 530 | 65 | 450 | 20 | ||||
| F70 | 82 | 565 | 70 | 485 | 18 | ||||
