150PSI cast Threaded Pipe Fittings For Street Elbow
| Place of Origin | China |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | STH-TH-8 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10pcs |
| Price | USD0.5-USD50 for each pc |
| Packaging Details | Cartons+Ply-wooden cases, Pallets |
| Delivery Time | 7 days for stock items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000000PCS one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thread | DIN 2999, ISO 7/1, ISO 228, NPT, BSPT, BSP | Casting | Investment Casting |
|---|---|---|---|
| Material | 304/304L, 316/316L | Size | 1/4"-4" |
| Highlight | Screwed Threaded Pipe Fittings,SS Threaded Pipe Fittings,150PSI Street Elbow |
||
Product Description

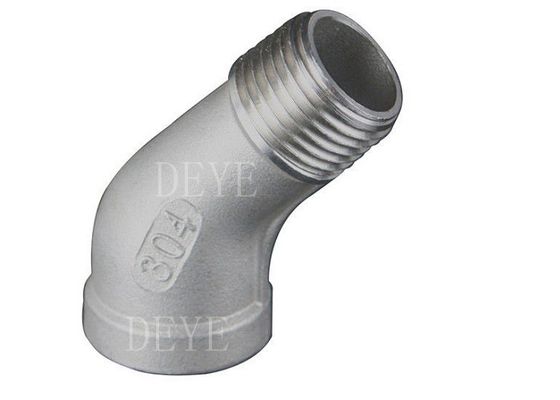

150PSI cast Threaded Pipe Fittings For Street Elbow
Stainless Steel Investment Casting Pipe Fitting, Male and Female Bsp/NPT Threaded SS304/316 steeet Elbow, the street elbow is installed between two lengths of pipe (or tubing) to allow a change of direction, usually a 90° or 45° angle; 22.5° elbows are also available. the ends with male/ female threaded to connect fittings or valves The screw thead of NPT BSPT makes the connection jobs more easlier and precisely.
Investment casting technology provides a better surface finish and allows for greater design flexibility. Investment casting can significantly reduce the cost and lower the production time per piece. because it accomplished by producing near net shape parts, Elbows, tees, reducers, unions, couplings, bushings, plugs ect. while greatly reducing the amount of material waste to finally offer
a best cost effective option for pipe fittings.
Product Information/Product Description/Basis Information/Specification
| Description | 150PSI cast Threaded Pipe Fittings For Street Elbow |
| Product name | threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee |
| Size | 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" |
| Gasket | NBR, FKM |
| Thread | BSPT,BSPP, NPT,PS , DIN |
| Material | stainless steel201,202, stainless steel304, stainless steel 316 |
| Casting Method | Investment precision casting, CNC machine |
| Application | Oil, Water, Industrial, Chemical |
| Test pressure | Usually 150PSI |
| Package | pcs/polybag, polybag/carton, cartons/pallet or according to your requirement |
| Advantages | 1.OEM and Customized service can be provided |
| 2. With experience,quality guaranteed | |
| 3. Approved by ISO9001:2015 | |
| 4. With independent open mold capacity, OEM supposed |
Technology/ Technical Data Sheets
 |
|
|
|
|
|
| 90° Elbow | 90° Street Elbow | 45° Elbow | |||
|
|
|
|
|
|
| Tee | Cross | Hex. Nipple | |||
|
|
|
|
|
|
| Hex. Plug | Square Plug | Hex. Cap | |||
|
|
|
|
|
|
| Round Cap | Coupling (Socket) | Half Coupling | |||
| SIZE | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 |
| 1/8” | 16 | 18 | 16 | 17 | 25 | 22 | 18 | 17 | 13 | - | - | - |
| 1/4” | 19 | 19 | 19 | 20 | 30 | 30 | 18 | 21 | 15 | 15 | 25 | 11 |
| 3/8” | 24 | 20 | 25 | 24 | 34 | 31 | 19 | 23 | 17 | 17 | 26 | 12 |
| 1/2” | 25.5 | 20 | 28 | 26 | 37 | 35 | 22 | 24 | 19 | 17.5 | 32 | 15 |
| 3/4” | 29.5 | 23 | 32 | 30 | 43 | 39 | 24 | 25 | 18 | 20.5 | 33 | 17 |
| 1” | 36 | 26 | 39 | 36 | 51 | 45 | 27 | 27 | 20.5 | 23.5 | 38 | 19 |
| 1-1/4” | 43.5 | 30 | 45 | 44 | 59 | 48 | 26 | 34.5 | 22 | 25.5 | 44 | 22 |
| 1-1/2” | 46.5 | 33 | 49 | 47 | 64 | 50 | 29.5 | 35.5 | 23 | 26.5 | 44 | 23 |
| 2” | 55.5 | 38 | 57 | 54 | 74 | 57 | 32 | 36 | 25.5 | 28 | 50 | 25 |
| 2-1/2” | 66 | 45 | 69 | 66 | 90 | 64 | 36.5 | 43 | 28.5 | 31 | 58 | 29 |
| 3” | 74 | 52 | - | 74 | 99 | 70 | 37.5 | 46.5 | 30.5 | 33 | 66 | 33 |
| 4” | 90 | 64 | - | 90 | 115 | 79 | 42 | 52 | 38.5 | 37 | 72 | 36 |
Production Process
Common used Material Grade
SS316 Chemical Composition
ASTM A351 CF8M, SS316 Chemical Composition in %
| ASTM A351 CF8M, SS316 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 9.0 | 18.0 | 2.00 | |||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 1.500 | 12.0 | 21.0 | 3.00 |
SS316 Mechanical Properties of the Fittings at room temperature
| SS316/SS316L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 30 | |
| Max. | 80 |
SS304 Chemical Composition
| ASTM A351 CF8, SS304 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 8.0 | 18.0 | ||||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 2.000 | 11.0 | 21.0 | 0.50 |
SS304 Mechanical Properties of the Fittings at room temperature
| SS304/SS304L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 35 | |
| Max |
Application/ Usage:
Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
