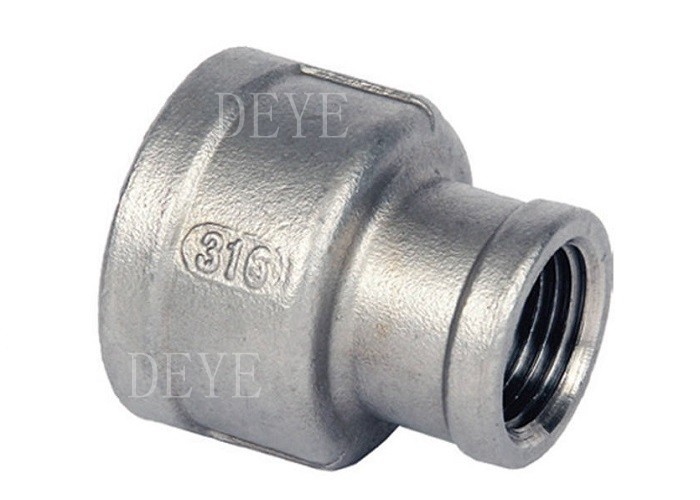

CF8M CF8 Screwed Threaded Pipe Fittings reducing coupling
| Place of Origin | China |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | STH-TH-22 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10pcs |
| Price | USD0.5-USD50 for each pc |
| Packaging Details | Cartons+Ply-wooden cases, Pallets |
| Delivery Time | 7 days for stock items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000000PCS one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thread | DIN 2999, ISO 7/1, ISO 228, NPT, BSPT, BSP | Casting | Investment Casting |
|---|---|---|---|
| Material | 304/304L, 316/316L | Size | 1/4"-4" |
| Highlight | Screwed Threaded Pipe Fittings,Threaded Pipe Fittings SS201,BSPT stainless steel npt fittings |
||
Product Description
SS201 SS304 SS316 50PSI NPT BSPT STAINLESS STEEL SCREWED THREADED PIPE FITTINGS
stainless steel pipe screw fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion,
a stainless steel pipe fitting will prevent contamination making it useful to many professionals. 304 Stainless Steel is economically priced,
chromium-nickel material that offers very good corrosion resistance. 316 Stainless Steel has higher nickel content and contains molybdenum for even better corrosion resistance
The screw types can NPT as per ASME B 1.20.1, BSPP BSPT as per BS21, DIN2999, The investment Stainless castings conform to
ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
Product Information/Product Description/Basis Information/Specification
| Description | CF8M CF8 Screwed Threaded Pipe Fittings reducing coupling |
| Product name | threaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee |
| Size | 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" |
| Gasket | NBR, FKM |
| Thread | BSPT,BSPP, NPT,PS , DIN |
| Material | stainless steel201,202, stainless steel304, stainless steel 316 |
| Casting Method | Investment precision casting, CNC machine |
| Application | Oil, Water, Industrial, Chemical |
| Test pressure | Usually 150PSI |
| Package | pcs/polybag, polybag/carton, cartons/pallet or according to your requirement |
| Advantages | 1.OEM and Customized service can be provided |
| 2. With experience,quality guaranteed | |
| 3. Approved by ISO9001:2015 | |
| 4. With independent open mold capacity, OEM supposed |
Technology/ Technical Data Sheets
 |
|
|
|
|
|
| Reducing Coupling | Hex. Bushing | Hose Nipple | |||
| SIZE | C1 | C2 | SIZE | C1 | C2 | ||
| D1 | D2 | D1 | D2 | ||||
| 1/8" | - | - | - | 1-1/4" | 1/8"-1 | 44 | 26 |
| 1/4" | 1/8" | 27 | 18 | 1-1/2" | 1/8"-1-1/4" | 48 | 29.5 |
| 3/8" | 1/8"-1/4" | 34 | 19 | 2" | 1/8"-1-1/2" | 56 | 32 |
| 1/2" | 1/8"-3/8" | 36 | 22 | 2-1/2" | 1/8"-2" | 62 | 36.5 |
| 3/4" | 1/8"-1/2" | 35 | 24 | 3" | 1/8"-2-1/2" | 67 | 37.5 |
| 1" | 1/8"-3/4" | 40 | 27 | 4" | 1/8"-3" | 76 | 42 |
Production Process
Common used Material Grade
SS316 Chemical Composition
ASTM A351 CF8M, SS316 Chemical Composition in %
| ASTM A351 CF8M, SS316 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 9.0 | 18.0 | 2.00 | |||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 1.500 | 12.0 | 21.0 | 3.00 |
SS316 Mechanical Properties of the Fittings at room temperature
| SS316/SS316L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 30 | |
| Max. | 80 |
SS304 Chemical Composition
| ASTM A351 CF8, SS304 Chemical Composition in % | ||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | |
| Min. | 8.0 | 18.0 | ||||||
| Max. | 0.080 | 1.500 | 0.040 | 0.040 | 2.000 | 11.0 | 21.0 | 0.50 |
SS304 Mechanical Properties of the Fittings at room temperature
| SS304/SS304L | Tensile Strength Rm (N/mm2) | Upper Yield Point ReH (N/mm2) min. | Elongation at rupture A5 (%) min. |
Hardness Test (HRB) |
| Min. | 485 | 205 | 35 | |
| Max |
Application/ Usage:
Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
