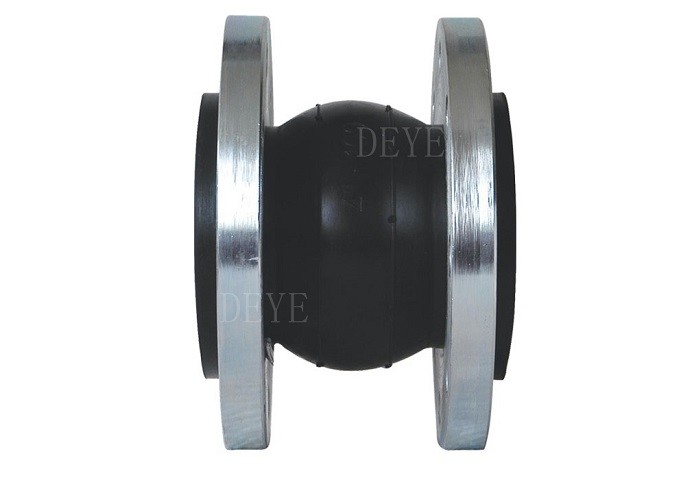

EPDM Rubber Expansion Joints With Stainless Steel Flange

  • EPDM Rubber Expansion Joints With Stainless Steel Flange
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number DY-RJ-U13
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD25 each
Packaging Details carton box+ ply wooden cases or carton+ Pallets
Delivery Time 20 days for usual order, 7 days for stocked items
Payment Terms T/T, L/C, D/P
Supply Ability 1000pcs one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Types Single Sphere Type, Twin Sphere Type, Double Sphere Type, Double Ball Type, Union Fittings Type Rubber Material EPDM, NBR, BUNA, Neoprene, VITON, PTFE, Hypalon
Flange Type HDG, Electric. Galvanized, Zinc Coated, Stainless Steel Rating PN10 PN16 PN25 CL150LBS 150#
Size 2" (DN50MM)-144"(DN3600MM)
Highlight

Nylon epdm rubber expansion joints

,

PTFE epdm rubber expansion joints

,

epdm expansion rubber joint
Leave a Message
Product Description

EPDM rubber joint for drinking Water with stainless steel flanges



Rubber expansion joints are flexible connectors for the construction of pipe systems. They relieve system strain by reducing vibration and
noise and compensate static or dynamic movements caused by thermal change, load stress, pumping surges or construction settlement.
They also compensate assembling inaccuracies (misalignment during installation) and can be used as pipe insert pieces to facilitate inspections

Rubber expansion joints isolate or reduce vibration caused by equipment. The transmission of vibration is reduced and
they protect equipment from these adverse effects.



Rubber expansion joint with high quality EPDM is suitable for Drinking water, has an WRAS approval. Except this it is resistant to cold and warm waste water, seawater, cooling water, water with chemical additives, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. It can handle hot water and cooling water with salt solutions as well.



Material of main Spare Parts


Cover EPDM, NBR, Hypalon, NR, PTFE
Reinforcing Fabric Nylon
Tube EPDM, NBR, Hypalon, NR, PTFE
Retain Rings Steel
Flange Carbon Steel, Stainless Steel, Duplex SS


Supplying Scope

Size Range DN50-DN800


Pressure Range

 PN10 PN16 PN25 for rubber
PN10, PN16, PN25, PN40, PN64, PN100 for metal bellow type



Design Pressure

Working Pressnre(Bar) 10 16 25
Burst pressure(Bar) 30 48 55
Vacuam(mmHg) 400 650 750




 Technology/ Technical Data Sheets

                 Spherical Single Sphere Rubber Expansion Joint

 EPDM Rubber Expansion Joints With Stainless Steel Flange 0


Dimension for Rubber joint PN16

Nominal diameter DN

Length L( mm)

　

NO.of bolt

n

 Flange Holes Dia.

Dia. Of bolt Circle

　

 Axial displacement (mm)

Lateral displacement

　

Angle of deflection

　
(mm) (in) Stretch Compression
32 11/4 95 4 17.5 100 6 9 9 15°
40 11/2 95 4 17.5 110 6 10 9 15°
50 2 105 4 17.5 125 7 10 10 15°
65 21/2 115 4 17.5 145 7 13 11 15°
80 3 135 130 8 17.5 160 8 15 12 15°
100 4 150 135 8 17.5 180 10 19 13 15°
125 5 165 160 8 17.5 210 12 19 14 15°
150 6 180 185 8 22 240 12 20 22 15°
200 8 190 200 8 22 295 16 25 22 15°
250 10 230 240 12 22 350 16 25 22 15°
300 12 245 260 12 22 400 16 25 22 15°
350 14 265 16 26 460 16 25 22 15°
400 16 265 16 26 515 16 25 22 15°
450 18 265 20 26 565 16 25 22 15°
500 20 265 20 30 620 16 25 22 15°
600 24 265 20 26 725 16 25 22 15°
700 28 260 24 30 810 16 25 22 10°
800 32 260 24 30 920 16 25 22 10u
900 36 260 24 30 1020 16 25 22 10w
1000 40 260 28 30 1120 16 25 22 10°



Dimension of Rubber joint 150LBS



Nominal diameter DN Length L(mm) b NO.of
bolt		 Dia. Of Flange holes Dia. Of Bolt Circle. PCD Axial displacement Lateral displacement Angle of deflection



(mm)
(mm)(in) L1 L2 　 　 　 　 stretch Compression 　 　
25 1 152 130 14 4 16 79.4 +9.5 13 ±13 ±15°
32 1 1/4 152 130 16 4 16 89 +9.5 13 ±13 ±15°
40 1-1/2 152 130 16 4 16 98.5 +9.5 -13 ±13 ±15"
50 2 152 130 16 4 19 121 +9.5 13 ±13 ±15"
65 2-1/2 152 130 18 4 19 139.5 +9.5 -13 ±13 ±15
80 3 152 130 18 4 19 153 +9.5 -13 ±13 ±15°
100 4 152 130 18 8 19 190 +9.5 16 ±13 ±15°
125 5 152 130 20
22		 8 22.5 216 +9.5 -16 ±13 ±15°
150 6 152 130 8 22.5 242 +9.5 -16 ±13 ±15°
200 8 152 130 22 8 22.5 298 +9.5 -16 ±13 ±15°
250 10 203 130 24 12 25.5 362 +13 16 ±19 ±15°
300 12 203 130 24 12 25.5 432 +13 19 ±19 ±15°
350 14 203 200 26 12 28.5 476 +13 -19 ±19 ±15°
400 16 203 200 28 16 28.5 540 +13 -19 ±19 ±15°
450 18 203 200 30 16 32 578 +13 -19 ±19 ±15°
500 20 203 200 30 20 32 634 +13 -19 ±19 ±15°
600 24 254 260 32 20 35 749.5 +13 -19 ±19 ±15°
800 32 254 260 36 24 30 920 +13 -19 ±19 ±15°



FEATURES

Absorb Axial movements (extension and compression).
Axial movement is the change in dimensional length of the bellows from its free length in a
direction parallel to its longitudinal axis.

Absorb Lateral movements.
Lateral movement is the relative displacement of one end of the bellows to the other end in a direction perpendicular to its longitudinal axis.

Absorb Angular and Torsional Movements.
Angular movement is the rotational displacement of the longitudinal axis of the bellows toward a point of rotation. Torsion refers to twisting one
end of the bellows with respect to the other end, about the bellows centerline.

Reduce Vibration.
Rubber expansion joints isolate or reduce vibration caused by equipment. The transmission
of vibration is reduced and they protect equipment from these adverse effects

Dampen Sound Transmission.
Rubber expansion joints tend to dampen transmission of sound because of the steel rubber interface of joints and mating flanges.


Manual and Install Notes of the Rubber Joint



1, The installation of expansion joints shall be in accordance with the expansion of piping construction drawings and installation instructions requested
2, Install expansion joint of the pipeline must be approx. to increase fixed by the orientation
and expansion joints can be made to play a role, so orientation and fixation of the settings must be in strict accordance with the design departments of the technical information. For orientation, the principle of setting a fixed support, please see "Bellows Expansion joints Installation Guide."
3, With a bellows expansion joint is formed with a thin stainless steel plate, so lost in moving, hoisting and welding should be careful not to hit the period, scratch, arc,weld spatter and other reasons to bellows damage
4, Should be removed before installation and piping bellows foreign body to ensure normal movement bellows
5, On a flow of media requests for expansion joint should be required to install the flow arrows
6, In order to make bellows in good working condition,can not install expansion joints in the deformation, including axial, lateral, turn transfer pipe installation error
7, Expansion joints installed, running in the system before moving to remove all painted yellow lose a fixed screw
8, Fabric fiber expansion joint is not subject to the tensile displacement due to the installation to the proper conduct of the pre-compression, the pipeline can not deflection, displacement and axial extension, should be noted that flexible ring of protection against scratches, installed as soon as possible to dismantle support board, so that in normal working condition


Application:

Oil & gas, Desalination, Cooling systems, Pumps, Chemical plants, Heating, ventilating
and air conditioning, Shipbuilding, Off-shore applications, Water treatment plants
Sewage, Sanitary piping systems, Pulp and paper plants, Piping systems for chilled or hot water, Cooling systems power generation, Phosphate plants, Potable water, Food process
