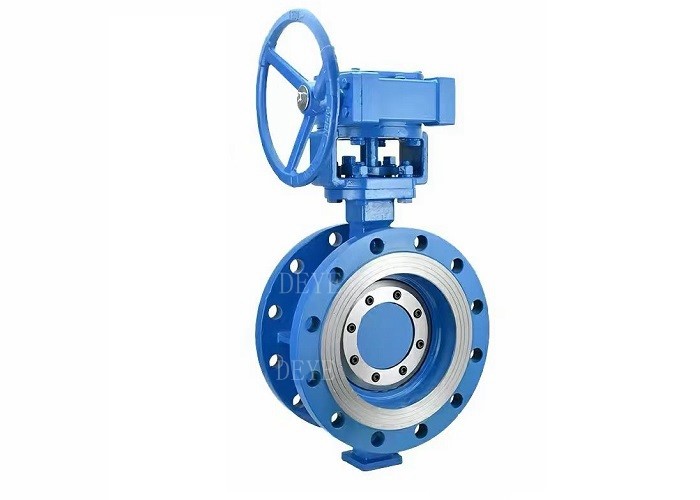

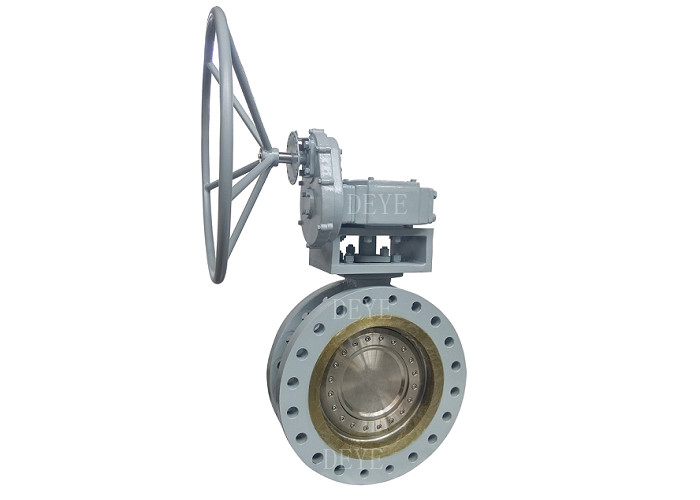

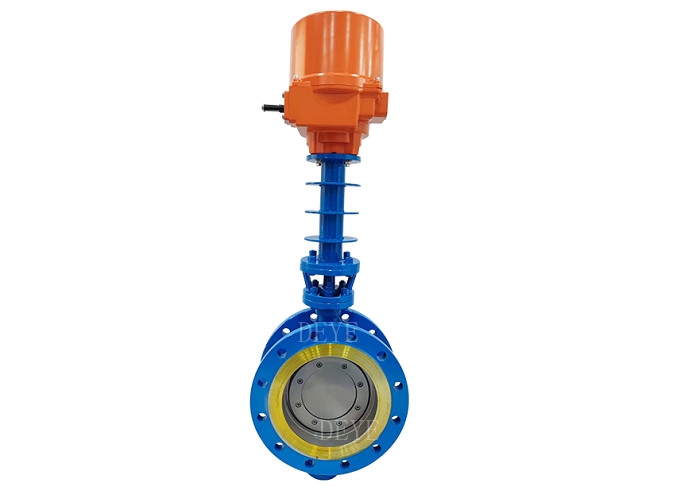

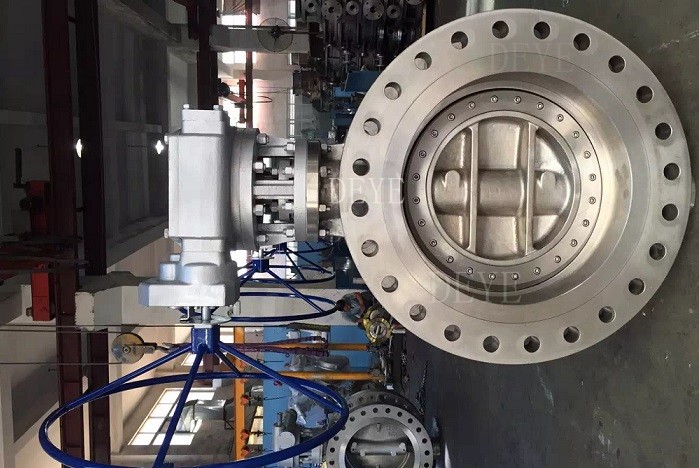

Double Flange Oil Gas Valve Triple Eccentric Butterfly Valve With Replaceable Seated
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-V-03 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Double Oil Gas Valve,DN15 Oil Gas Valve,triple eccentric butterfly valve |
||
|---|---|---|---|
Product Description
Butterfly valve is used to shut off or modulate the flow of a fluid (isolation and regulation). API 609 Centric butterfly valves (soft seated) are preferred to gate and ball valves for low-pressure and non-critical applications as they are cheaper, lighter and easier to install. Eccentric butterfly valves (double offset and triple offset valves) with metal seats have surged in popularity and compete with globe and ball valves for some applications.
Product Information/Product Description/Basis Information / Specification
| API VALVE Standard |
API609 Butterfly valve API600 Bolted Bonnet Steel Gate Valves for Petroleum and Natural Gas Industries API602 Forged Steel valves API603 Stainless steel valve API6D Gate valve, Plug valve and Ball valve API594 Wafer, Lug check valve BS1868 check valve BS1873/ /BS 5352 cast and forged Globe valve |
| Types | Butterfly valve with wafer, Lug, flanged type |
| Butterfly valve with concentric type, double eccentric type, triple offset type | |
| Size | 1/2"-48 DN15-DN1200 |
| End Connection | Flange Ends, RF, FF, RTJ, LM, BW ends, threaded ends NPT, BSPT, BSPP, Socket Welded Ends |
| Pressure Range |
CL150LBS, 300LBS, 600LBS, 800LBS 900LBS, 1500LBS, 2500LBS PN6 PN10 PN16 PN25 PN40. PN64 PN110, PN160, PN250, PN420 |
| Surface | Acid pickling, Polished, Galvanized, Painting, epoxy Power Coated |
Material List Grade
| Main Ingredients | Standards | |||||||
| Castings | Bar or Forgings | |||||||
| ASTM | DIN (W.-Nr.) | UNS-No. | JIS | ASTM | DIN (W.-Nr.) | UNS-No. | JIS | |
| Martenstic Stainless Steel | ||||||||
| 13Cr-4Ni-0.8Mo | A743 CA6NM | 1.4313 | J91540 | SCS6 | A276 S41500 | 1.4313 | S41500 | － |
| Austenitic Stainless Steel | ||||||||
| 18Cr-8Ni | A351 CF8 | 1.4308 | J92600 | SCS13A | A276 304 | 1.4301 | S30400 | SUS 304 |
| 18Cr-8Ni-LS (1) | ||||||||
| 18Cr-8Ni-LC (2) | A351 CF3 | 1.4306 | J92500 | SCS19A | A276 304L | 1.4306 | S30403 | SUS 304L |
| 18Cr-9Ni-2Mo | A351 CF8M | 1.4408 | J92900 | SCS14A | A276 316 | 1.4401 | S31600 | SUS 316 |
| 18Cr-9Ni-2Mo-LS (1) | ||||||||
| 18Cr-9Ni-2Mo-LC (2) | A351 CF3M | 1.4404 | J92800 | SCS16A | A276 316L | 1.4404 | S31603 | SUS 316L |
| 18Cr-10Mi-Nb | A351 CF8C | 1.4552 | J92710 | SCS21 | A276 347 | 1.455 | S34700 | SUS 347 |
| 18Cr-12Ni-3.5Mo | A351 CG8M | － | J93000 | － | A276 317 | 1.4449 | S31700 | SUS 317 |
| 18Cr-12Ni-3.5Mo-LC (2) | A351 CG3M | － | J92999 | － | A276 317L | 1.4438 | S31703 | SUS 317L |
| 18Cr-13Ni-4.5Si | － | － | － | － | － | － | － | － |
| 21Cr-29Ni-2.5Mo-3.5Cu | A351 CN7M | 1.4536 | J95150 | SCS23 | A473 N08020 | 2.466 | N08020 | － |
| 21Cr-29Ni-2.7Mo-3.2Cu-LC (2) | A990 CN3MCu | － | － | － | － | － | － | |
| 25Cr-20N | A351 CK20 | － | J94202 | SCS18 | A276 310S | 1.4845 | S31008 | SUS 310S |
| 33Ni-20Cr-45Fe-Nbi | A351 CT15C | 1.4859 | N28820 | － | B408 N08800 | 1.4876 | N08800 | NCF800 |
| Super Austenitic Stainless Steel | ||||||||
| 21Cr-24Ni-6.5Mo-N | A351 CN3MN | － | － | － | B691 N08367 | － | N08367 | SUS 836L |
| 25Cr-24Ni-6.5Mo-N | A351 CN3MN mod. | － | － | － | － | － | － | － |
| 20Cr-18Ni-6.5Mo-N-Cu | A351 CK3MCuN | － | J93254 | － | A276 S31254 | － | S31254 | － |
| Duplex Stainless Steel | ||||||||
| 22Cr-5Ni-3Mo-N | A995 Gr.4A CD3MN | － | J92205 | － | A276 UNS32205 | 1.4462 | S32205 | SUS 329J3L |
| 25Cr-5Ni-Mo-Cu | A890 Gr.1A CD4MCu | － | J93370 | － | A790 UNS31260 | － | S31260 | － |
| Super Duplex Stainless Steel | ||||||||
| 25Cr-7Ni-3Mo-N | － | － | － | SCS10 | A479 S32750 | 1.446 | S32750 | SUS 329J4L |
| 28Cr-7Ni-4Mo-N | － | － | － | SCS10 mod. | － | － | － | － |
| 25Cr-7Ni-3Mo-Cu-N-W | A890 Gr.6A CD3MWCuN | 1.4468 | J93380 | － | A479 S32750 | 1.446 | S32750 | － |
| 25Cr-7Ni-4Mo-N | A890 Gr.5A CE3MN | － | J93404 | － | A479 S32750 | 1.446 | S32750 | － |
High Temperature Material CF8, 304, 304H CF8M, 316, 316H CK-20, 310, 310H WC4, WC5, F2, WC6, F11C1.2, F12C1.2, WC9, F22C1.3, C5, F5, WC4, WC5, F2, WC6, F11C1.2, F12C1.2, WC9, F22C1.3, C5, F5
Low Temperature Material A352 LCB, LCC, LC1 LC2, LC3, LC4, CF8M, CF8, CF3M
Alloy Material: Bronze, IN Conoy, DUPLEX SS, Alloy 20, Hastelloy C 276, Hastelloy B
Technical Pressure Test
| Shell Test | 1.5xworking pressure | ||||
| Seal Test | 1.1x Working Pressure | ||||
| air test for seal | 0.6Mpa by air | ||||
| Valve Size | Minimum Test Duration (Seconds) | ||||
| DN | NPS | Shell ,夕 编｀ |
Backseat (for Valves with Backseat Featu_re) | Closure Check Valves (API 594) | Closure Other Valves |
| ≤50 | ≤ 2" | 15 | 15 | 60 | 15 |
| 65 to 150 | 2 1/2" to 6" | 60 | 60 | 60 | 60 |
| 200 to 300 | 8"-12" | 120 | 60 | 120 | 120 |
| ≥350 | ≥14" | 300 | 60 | 120 | 120 |
| a The test duration is the period of inspection aft the valve is fully prepared and is unde full pressure. | |||||
| Maximum allowable Leakage Rates for Closure Test | |||||||
| Valve Size | All Resilient Seated Valves | Metal Seated Valves Except Check | Metal Seated Check Valves | ||||
| DN (mm) |
NPS | Liquid Test (drops/ minute) | Gas. Test (bubbles/ minute) | Liquid Test (cc/min) | Gas Test (m3/h) | Gas Test (ft3/h) | |
| ≤50 | ≤2 | 0 | 0 | 0 | 6 | 0.08 | 3 |
| 65 | 21/2 | 0 | 5 | 10 | 7.5 | 0.11 | 3.75 |
| 80 | 3 | 0 | 6 | 12 | 9 | 0.13 | 4.5 |
| 100 | 4 | 0 | 8 | 16 | 12 | 0.17 | 6 |
| 125 | 5 | 0 | 10 | 20 | 15 | 0.21 | 7.5 |
| 150 | 6 | 0 | 12 | 24 | 18 | 0.25 | 9 |
| 200 | 8 | 0 | 16 | 32 | 24 | 0.34 | 12 |
| 250 | 10 | 0 | 20 | 40 | 30 | 0.42 | 15 |
| 300 | 12 | 0 | 24 | 48 | 36 | 0.5 | 18 |
| 350 | 14 | 0 | 28 | 56 | 42 | 0.59 | 21 |
| 400 | 16 | 0 | 32 | 64 | 48 | 0.67 | 24 |
| 450 | 18 | 0 | 36 | 72 | 54 | 0.76 | 27 |
| 500 | 20 | 0 | 40 | 80 | 60 | 0.84 | 30 |
| 600 | 24 | 0 | 48 | 96 | 72 | 1.01 | 36 |
| 650 | 26 | 0 | 52 | 104 | 78 | 1.09 | 39 |
| 700 | 28 | 0 | 56 | 112 | 84 | 1.18 | 42 |
| 750 | 30 | 0 | 60 | 120 | 90 | 1.26 | 45 |
| 800 | 32 | 0 | 64 | 128 | 96 | 1.34 | 48 |
| 900 | 36 | 0 | 72 | 144 | 108 | 1.51 | 54 |
| 1000 | 40 | 0 | 80 | 160 | 120 | 1.68 | 60 |
| 1050 | 42 | 0 | 84 | 168 | 126 | 1.76 | 63 |
| 1200 | 48 | 0 | 96 | 192 | 144 | 2.02 | 72 |
| a For the liquid test, 1 ml is considered equivalent to 16 drops. b There shall be no leakage for the minimum specified test duration . For liquid test, 0 drops means no visible leakage per minimum specified test duration. For gas test, 0 bubbles means less than 1 bubble per minimum specified test duration. |
|||||||
DOUBLE VS. TRIPLE ECCENTRIC BUTTERFLY VALVE
DOUBLE ECCENTRIC BUTTERFLY VALVE
Double eccentric butterfly valves find large application in underground water supply applications and compete with gate valves (especially in larger bore sizes) due to the fact that they are lighter, cheaper and minimize the excavation works.
TRIPLE ECCENTRIC BUTTERFLY VALVE
Triple offset butterfly valves are built with high-grade materials like stainless steel and duplex/super duplex steel and compete with ball valves in mission-critical applications with remarkable corrosion and high temperature/pressure. Triple offset butterfly valves are the most sophisticated type and are gaining market share in the latest years.
The images show the design difference between a double and a triple eccentric butterfly valve (respectively at the left and right side of the diagram).
Application:
Valve is a universal component industrial product that is widely used in many industries, such as petroleum, petrochemical, chemical, metallurgy, power, water conservancy, urban construction, machinery, coal, food, Sea water, 0il Refining, environment, energy.
Reference Standard:
API 600: cast carbon and alloy valves
API 603: stainless steel valves
API 602/BS 5352: forged valves
API 6D: slab and through conduit valves for pipelines
API 598 and BS EN 12266-1: valves testing
ASME B16.10: face to face dimensions for valves
ASME B16.5 and ASME B16.47: flanged connections
ASME B16.25: butt weld connections design
ASME B16.34: Pressure ratings pressure and temperature ratings by material grade
ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances
and designation.
ISO 4200:1991, Plain end steel tubes, welded and seamless — Dimensions.
ISO 5208:1993, Industrial valves — Pressure testing of valves.
ISO 5209:1977, General purpose industrial valves — Marking.
ISO 5210:1991, Industrial valves — multi-turn valve actuator attachments.
ISO 5752: — 1), Metal valves for use in flanged pipe systems — Face-to-face and center-to-face dimensions.
ISO 6708:1995, Pipework components — Definition and selection of DN (nominal size) .
ISO 7005-1:1992, Metallic flanges — Part 1: Steel flanges.
ISO 7268:1983, Pipe components — Definition of nominal pressure.
ASME B1.1:1989, Unified inch screw threads (UN and UNR thread form) .
ASME B1.5:1988 (R1994), Acme screw threads.
ASME B1.8:1988 (R1994), Stub Acme screw threads.
ASME B1.12:1987 (R1992), Screw threads — Class 5 interference — Fit thread.
ASME B1.20.1:1983 (R1992), Pipe threads, general purpose (inch) .
ASME B16.5:1996, Pipe flanges and flanged fittings.
ASME B16.34:1996, Valves — Flanged, threaded and welding end.
ASME B18.2.2:1987 (R1993), Square and hex nuts (inch series) .
ASTM A193:1996, Specification for alloy steel and stainless-steel bolting materials for high-temperature service.
ASTM A194:1996, Specification for carbon and alloy steel nuts for bolts for high-pressure and high-temperature
service.
ASTM A307:1994, Specification for carbon steel bolts and studs, 60 000 psi tensile strength.
MSS SP-55:1985 (R1990), Quality standard for steel castings, visual surface examination.
1) To be published. (Revision of ISO 5752:1982)
