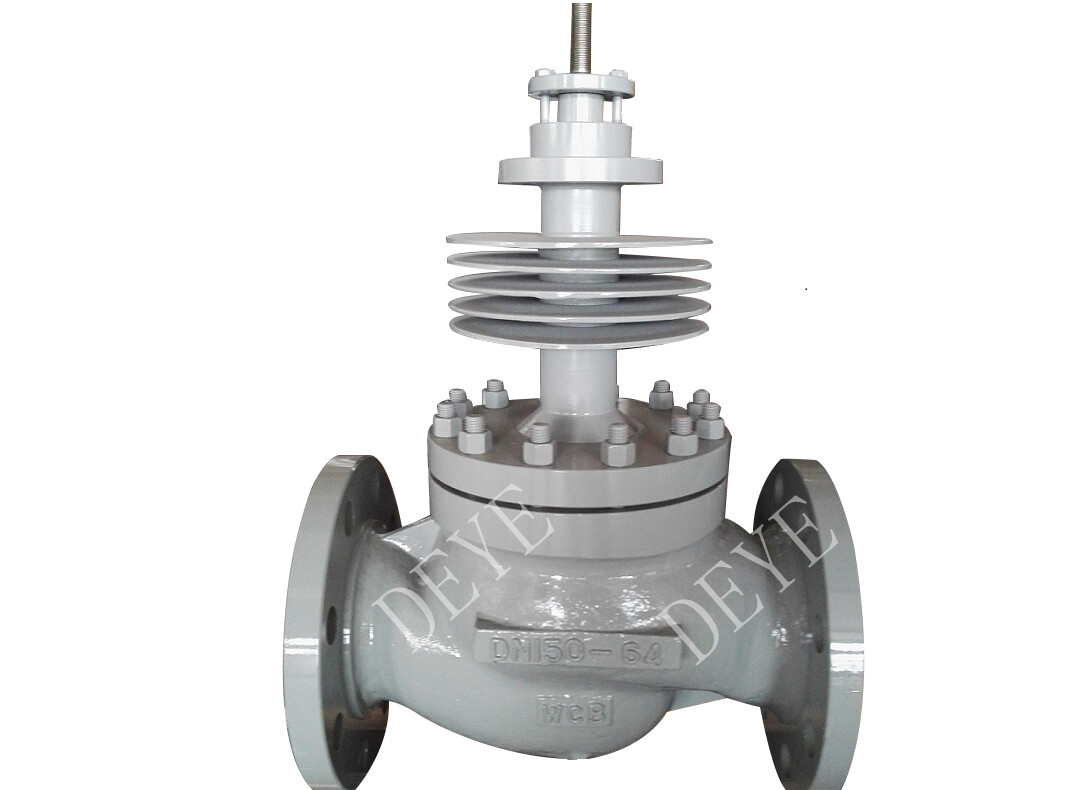

Steel Globe Regualtion Control Valve With Cooling Fins
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | C-PR-64-6 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10 PCS |
| Price | USD2-USD20000 EACH |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Valve Body Material | WCB | ||
|---|---|---|---|
| Highlight | Regualtion Control Valve,Control Valve Globe,WCB regulating valves |
||
Product Description
Steel Globe Regualtion Valve With Cooling Fins
Series No. C-PR-64-6
pressure regulation control valve with Carbon steel sleeve globe flow control
Quick Details:
Sleeve globe flow regulation valve
Straight Body
Valve core; window sleeve
Pressure; 150LBS
Flange; ANSI B15.5 RF.
Body: WCB
Gasket; 316+Graphite
Bolt ; Galv. Steel
Sleeve: SS 304
Spool (stem): SS 304
Packing pad: SS 304
Packing : PTFE/flexible graphite
Flange distance: according to IEC 534
Flow characteristic: equal percentage, Linear, quick open
Product Range:
Body type: Straight /Angle Type
Material; WCB, WC9,WCB, CF8, CF8M, CF3M
Nominal diameter: DN20, 25, 32, 40, 50, 65, 80, 100, 200
Nominal pressure: PN 1.6, 2.5, 4.0, 6.4, 10.0Mpa/ANSI 150, 300, 600Lb
Connection method: Flange: FF, RF, RTJ, etc.
Thread: (Applicable to below 1")
Welding: SW, BW
Valve cover form: standard /extended (heat dissipation, low temperature, bellows sealing)
Filling material: V-type PTFE, flexible graphite packing, etc.
Gasket: metal clip graphite gasket, PTFE gasket
Actuator: pneumatic: multi-spring actuator, single spring actuator
Electric: 3810L series, PSL series
Performance:
The sleeve regulating valve is widely used because of its good stability and simple maintenance. It can be designed as a balanced type to eliminate most of the static unbalance force on the valve flap, and has a certain damping effect, which can reduce the vibration caused by fluid flow. Used for occasions where the pressure difference is relatively large.
Application:
The regulating valve is widely used in the production automation control of industrial sectors such as electric power, metallurgy, chemical industry, petroleum, light textile, pharmaceutical, paper making and so on.
