Cast Ductile Iron Pressure Released Control Valve With Brass Fittings
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | 500X pressure relief/sustaining valve |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10 PCS |
| Price | USD15-USD20000 EACH |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Valve Body Material | Ductile Iron , WCB | ||
|---|---|---|---|
| Highlight | Released Control Valve,Cast Ductile Iron Control Valve,Brass release valve |
||
Product Description

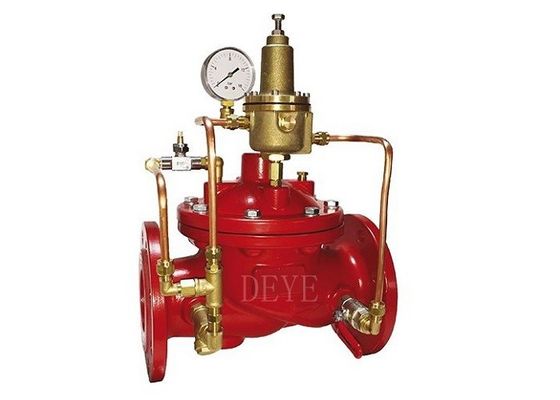

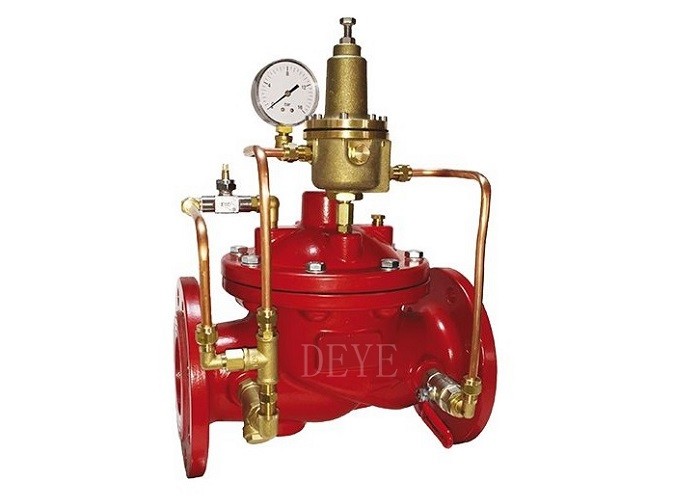

Cast Ductile Iron Pressure Released Control Valve With Brass Fittings
Overview
The 500X pressure relief / sustaining valve consists of a main valve, a pressure relief/sustaining pilot valve needle valve, a ball valve, a micro-filter and a pressure gauge to form a hydraulic control pipe system. Using hydraulic automatic operation, it can be used not only as a pressure relief valve but also as a pressure sustaining valve.
- When used as a pressure relief valve, it can maintain the pressure of the water supply line below the set safety value;
- As a pressure sustaining valve, it can maintain the upstream water pressure of the main valve above the set value and maintain the upstream water supply pressure of the main valve.
Specifications
| Body Parts | Material |
| Body, Bonnet | Ductile iron, WCB |
| Seat/ Disc | Alloy Brass |
| Diaphragm | NBR, N-BUNA |
| Seal Rings | NBR |
| Shaft/ Stem | 2Cr13 |
| Spring | 50CrVA |
| Needle Valve | Brass. Bronze, Stainless steel |
| Ball Valve | Brass. Bronze, Stainless steel |
| Float Ball | Brass, Stainless Steel |
| Micro. Strainer | Stainless Steel |
Working Pressure Adjustment Scope
| Pressure | Shell Test | Seal Test | Inlet Rating | Outlet | Medium | Temperature |
| PN10 | PN15 | PN11 | PN10 | Bar 0.9-8 | Water | 0-80℃ |
| PN16 | PN24 | PN17.6 | PN16 | Bar 1.0-12 | ||
| PN25 | PN37.5 | PN27.5 | PN25 | Bar 1.5-16 |
Application:
The 500X pressure relief/sustaining valve is mainly used in firefighting or other water supply systems to prevent system overpressure or maintain the pressure of fire water supply systems. The impact of water hammer can also be reduced after the fire pump is turned off. Also used in water hammer devices for large water supply systems. In addition, a clean filter is installed at the inlet of the valve control system. Using the characteristics of the fluid, the suspended particles with large specific gravity and large diameter will not enter the control system, ensuring the smooth circulation of the system and making the valve operate safely and reliably. The system operates smoothly, with high strength and long service life.
