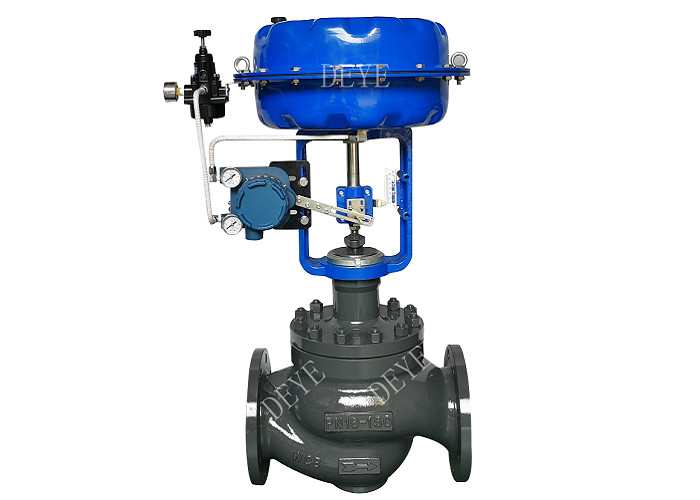

Steel Globe Control Valve With Diaphragm Pneumatic Actutor
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | C-PR-16-6 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Valve Body/Cap | Carbon Steel WCB | ||
|---|---|---|---|
| Highlight | Globe Control Valve,Steel Control Valve,Carbon Steel globe valve |
||
Product Description
Steel Globe Control Valve With Diaphragm Pneumatic Actutor
Series No. C-PR-16-6
Carbon steel Pressure regulation valve with diaphragm Pneumatic actuator
Quick Details:
Design Standard DIN PN16
Valve Body/Cap: Carbon Steel WCB
Valve Core/ Seat: Stellite. STL
Packing: PTFE.
Gasket: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt: S.S 304.
Flange: DIN EN1092-1 PN16
Size: DN150
Pressure: PN16
Test: EN12226-1
Executive Actuator
Type: Multi-spring film actuator
positive action, reverse action
Diaphragm material: nitrile rubber clip reinforced polyester fabric
Spring range: 20～100KPa, 40～200KPa 80～240KPa
Air supply pressure: 0.14～0.4MPa
Signal interface: female thread M16×1.5 (M10×1)
Ambient temperature: -30℃～+70℃
Accessories (configured according to requirements)
Positioner, air filter pressure relief valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, relay, retention valve, other
Return differential: 3% ( Without Positioner), 1% ( With Positioner)
Linear: ±5% ( Without Positioner), ±1% ( With Positioner)
Adjustable Range: 50:1
Product Range:
Pressure Rating: Pn16~100Class150~600
Valve Body Type: Straight-Through Type, Angle Type
Material: WCB, CF8, CF8m, Bronze
Nominal Diameter: Dn20~400mmNps3/4~16
Applicable Temperature Range: -196 Deg C~+566 Deg C
Actuator Type: Pneumatic Diaphragm Actuator, Elec. Actuator.
Connection: Flanged, Butt Welded
Specification: CE, SGS
Flow characteristic: equal percentage, Linear, quick open
Shut-off class: ASME B16.104 V (standard metal seat)/ AS ME B16.104 V I (shut-off soft seat)
Performance:
Globe Control valve is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve core, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.
The valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
Application:
The control valve has a wide range of control from vacuum valve to high pressure valve, from low temperature to high temperature. It is widely used in the automatic control process of petroleum refining, petrochemical industry, chemical fertilizer, general chemistry, steel, metallurgy, papermaking, electric power, light industry etc.
