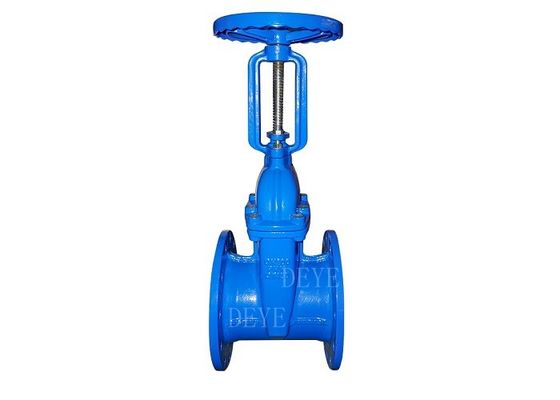

Rising Stem Din F4 F5 Water Valve BS5163 Cast Ductile Iron Gate Valve With PN10 PN16 PN25
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-GV-Z-7 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Water Valve F4,Water Valve F5,Cast ductile iron gate valve |
||
|---|---|---|---|
Product Description
Rising Stem Din F4 F5 Bs5163 Cast Ductile Iron Gate Valve With PN10 PN16 PN25
Iron Gate Valve Model No. GV-Z-7
ductile iron DIN PN16 Flat resilient Gate valve for drinking Water. Temperature: -30℃-+125℃
Quick Detail
Design standard: DIN3352 EN1171, BS5163, AWWAC515
End connection: RF. Flange
Face to face: DIN33352 F4 short type,F5 Long Type, BS5163, AWWAC515
Working temperature: -30℃~+125℃.
Test and inspection: API 598.
Gland Gate valve
Product Range Size: 2"-48" DN50-DN1200
Connection: Flange ends conform to EN1092-1
Inside and outside FEB coating Min. 250 Microns.
Specifications:
| Rising Stem Din F4 F5 BS5163 Cast Ductile Iron Gate Valve | |
| Material | Iron |
| Design standard | DIN3352 EN1171, BS5163, AWWAC515 |
| End connection | RF. Flange |
| Size Range | DN50-DN1200 (2”-48”) |
| Pressure Range | PN10, PN16, 150LBS |
| Face to face | DIN33352 F4 short type,F5 Long Type, BS5163, AWWAC515 |
| Working temperature | -30℃~+125℃ |
| Test and inspection | API 598 |
| Product Range Size | 2"-48" DN50-DN1200 |
| Connection | Flange ends conform to EN1092-1 |
| Inside and outside FEB coating Min | 250 Microns |
| Available Body Material | Cast Iron GG25, Ductile iron GGG40, GGG50 |
| Available Disc Material | Ductile iron, Bronze |
| Optional Seat Ring | EPDM, NBR, Brass, Bronze, SS304, SS316 |
| Optional Design | DIN /BS/ ANSI with difference Face to face length |
| Optional Ends | BS4504/EN1092-1 PN16/ ANSI B16.5 RF |
| Optional surface color | RAL5002, RAL5015. RAL5005, red, black. Or customized |
| Optional Operation | Handwheel /Chain wheel/ electric Actuator/pneumatic actuator |
Products Range:
Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50
Available Disc Material: Ductile iron, Bronze
Optional Seat Ring: EPDM, NBR, Brass, Bronze, SS304, SS316
Optional Design: DIN /BS/ ANSI with difference Face to face length
Optional Ends: BS4504/EN1092-1 PN16/ ANSI B16.5 RF
Size Range: DN50-DN1200 (2”-48”)
Pressure Range: PN10, PN16, 150LBS.
Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized
Optional Operation: Handwheel /Chain wheel/ electric Actuator/pneumatic actuator
Performance
• PN10/16/PN25/150PSI/225PSI Resilient Seated Gate Valve is operating by the EPDM covered iron wedge
moving perpendicular to the flow axis through a worm machined stem multi turned
• 100% tight sealing is achieved through EPDM covered wedge fully contacting
The fusion bonded epoxy coated flow surface
• In each time the valve is opened, the flow on the line cleans the sealing surface,
Prevents from dirt and deposits
• With its short installation length ( DIN 3202 F4), does not occupy a big place
• It has ductile iron body and stainless steel stem
• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy
• Suitable to install actuator and gearbox
• Suitable to use with ground and underground applications. Can be operated with extension spindle
• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed
Technical Data Sheets:
APPLICATIONS
Hot Water, Cold Water, Fluids without acidity or alkalinity properties
