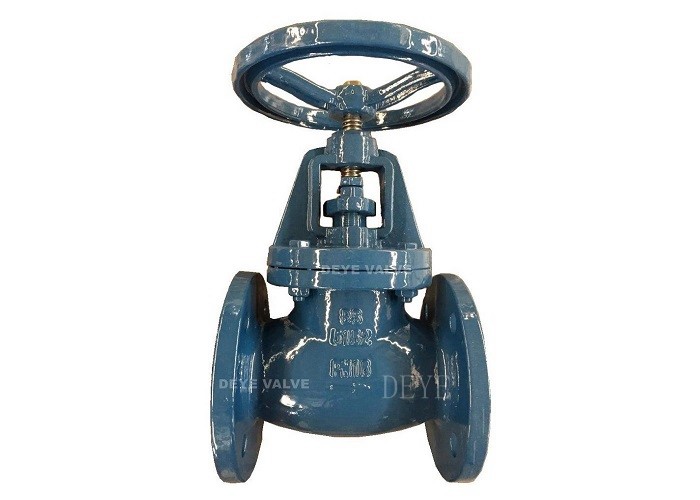

Ansi CL150 Cast Iron Globe Valves With Flange Ends
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-G-H-01 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | CL150 Cast Iron Globe Valves,Ansi Cast Iron Globe Valves,Ansi ci globe valve |
||
|---|---|---|---|
Product Description
Model No. G-H-01
bronze seated cast iron globe valve with ANSI CL150 Temperature: -30℃-+300℃
Quick Detail
Design standard: ANSI CL150
Body material: cast grey iron GG25
Seat/Plug: ductile iron +bronze
End connection: flange RF
Face to face: BS standard
Working temperature: -30℃~+300℃.
Test and inspection: API 598.
Product Range Size: 1/2"-16" DN15-DN400
Connection: Flange to ANSI B16.5 EN1092-1
Epoxy Power Coated inside and outside with 300 microns
.
Product Range:
Available material of the body: GGG40, GGG50, ASTM A536
Available seat seal: Stainless steel 304, SS316. Bronze. Brass, Gunmetal
Pressure Range: PN6, PN10 PN16 150LBS
Size Range: DN15-DN450
Optional Face to Face Design: ANSI BS customized
FEATURES
•CL150 Metal Seated Globe Valve is operating by the Brass seated iron disc
• Moving perpendicular to the flow axis through a worm machined stem multi turned
• Tight sealing is achieved through Brass seated on wedge fully contacting
The body seated ring, Leakage Grade is up to Grade B as Min.
• In each time the valve is opened, the flow on the line cleans the sealing surface,
Prevents from dirt and deposits
• With its short installation length( ANSI B16.10), doesn’t occupy a big place
• It has ductile iron body and stainless steel stem
• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy
• Suitable to install actuator and gearbox
• Suitable to use with ground and underground applications. Can be operated with extension spindle
• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed
TECHNICAL DATA SHEETS
APPLICATIONS
Hot Water, Cold Water, Sewage Water, Fluids without acidity or alkalinity properties
