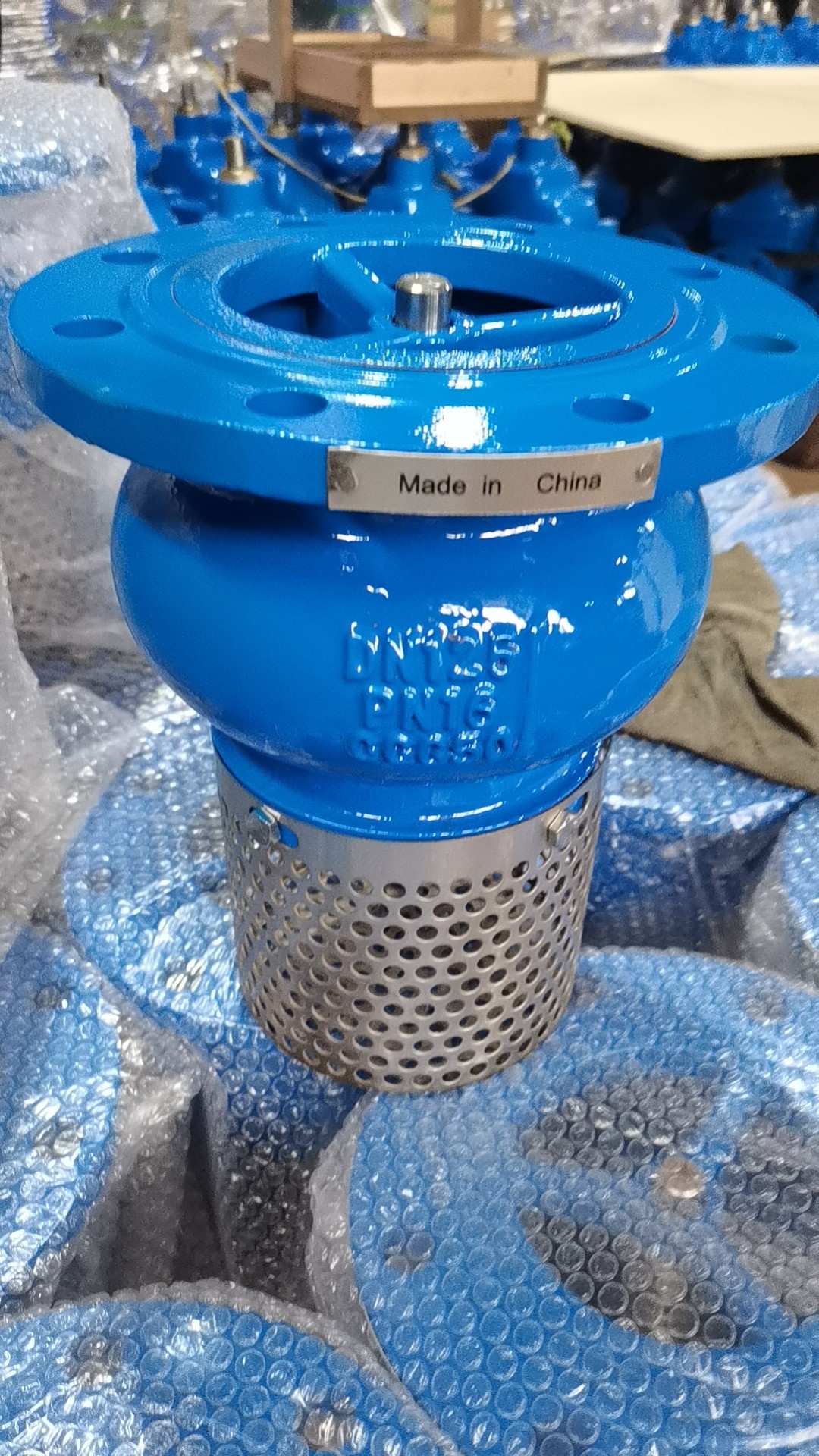

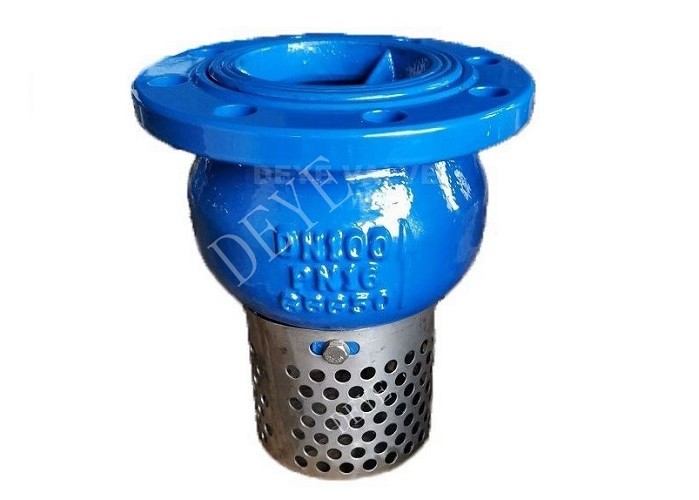

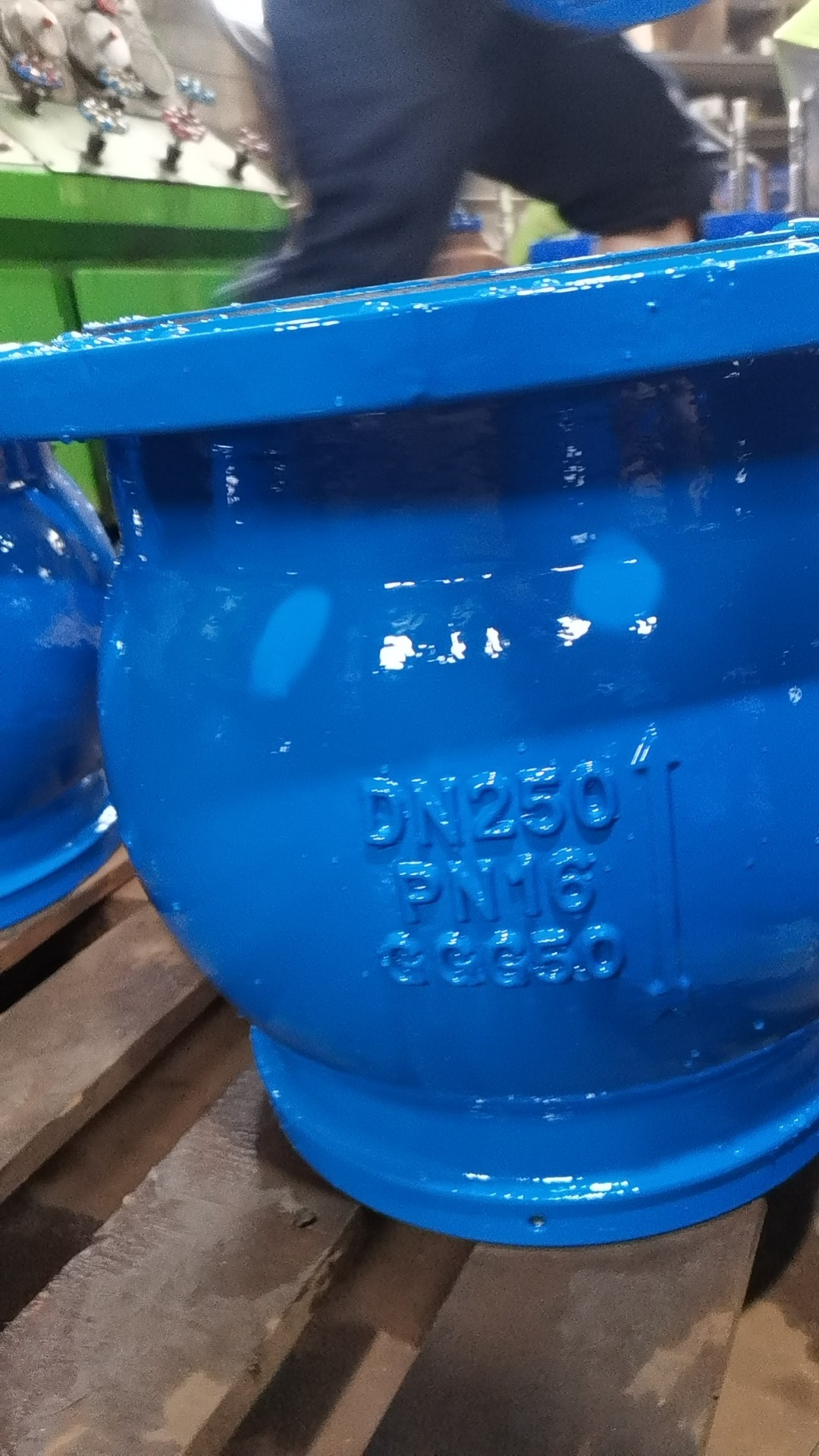

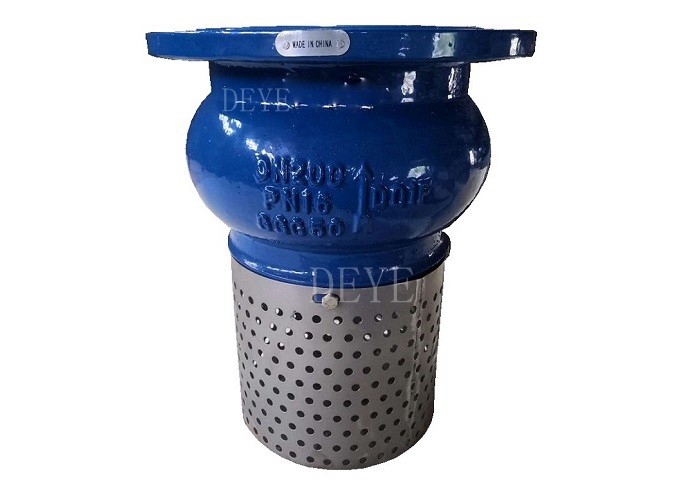

PN16 PN10 Cast Ductile Iron Foot Check Valve With Stainless Steel Screen
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-CV-R-01 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | PN10 foot check valve,PN16 foot check valve,Cast Ductile Iron foot check valves |
||
|---|---|---|---|
Product Description
Model No. CV-R-01
Ductile iron/cast iron foot check valves with NBR seat, stainless steel strainer, PN10/PN16/150LBS. Temperature: -0℃-+80℃
Quick Detail
Design standard: DIN/BS
Pressure: DIN PN16
Working temperature: 0℃~+80℃.
Test and inspection: EN12266-1
Connection: Flange ends conform to EN1092-1
Epoxy Powder Coated inside and outside
Product Range:
Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50
Optional Seat Ring: NBR, EPDM
Optional Ends: BS4504/EN1092-1 PN16
Size Range: DN50-DN250 (2”-10”)
Pressure Range: PN10, PN16
Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized
Performance:
1. The foot valve is a kind of energy-saving valve.
2. Generally installed at the bottom end of the underwater suction pipe of the pump to restrict the liquid in the pump pipe from returning to the water source.
3. There are many water inlets and reinforcing ribs on the bonnet, which are not easy to block, and are mainly used in pumping pipelines. T
• Coated with fusion bonded epoxy Min. 250 microns.
Technical data sheets
Application:
Water, oil, and non-corrosive media
