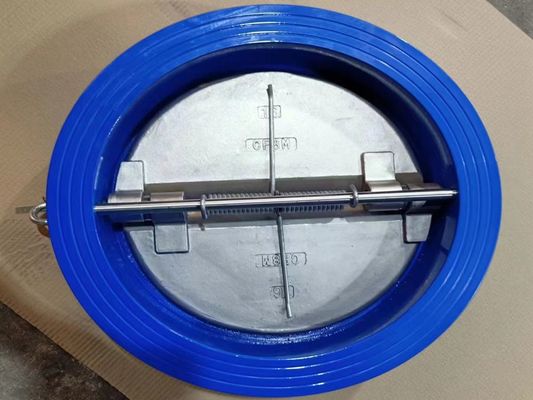

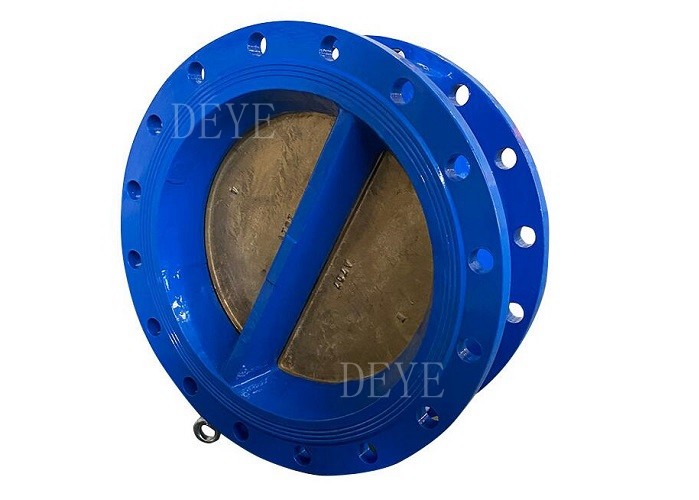

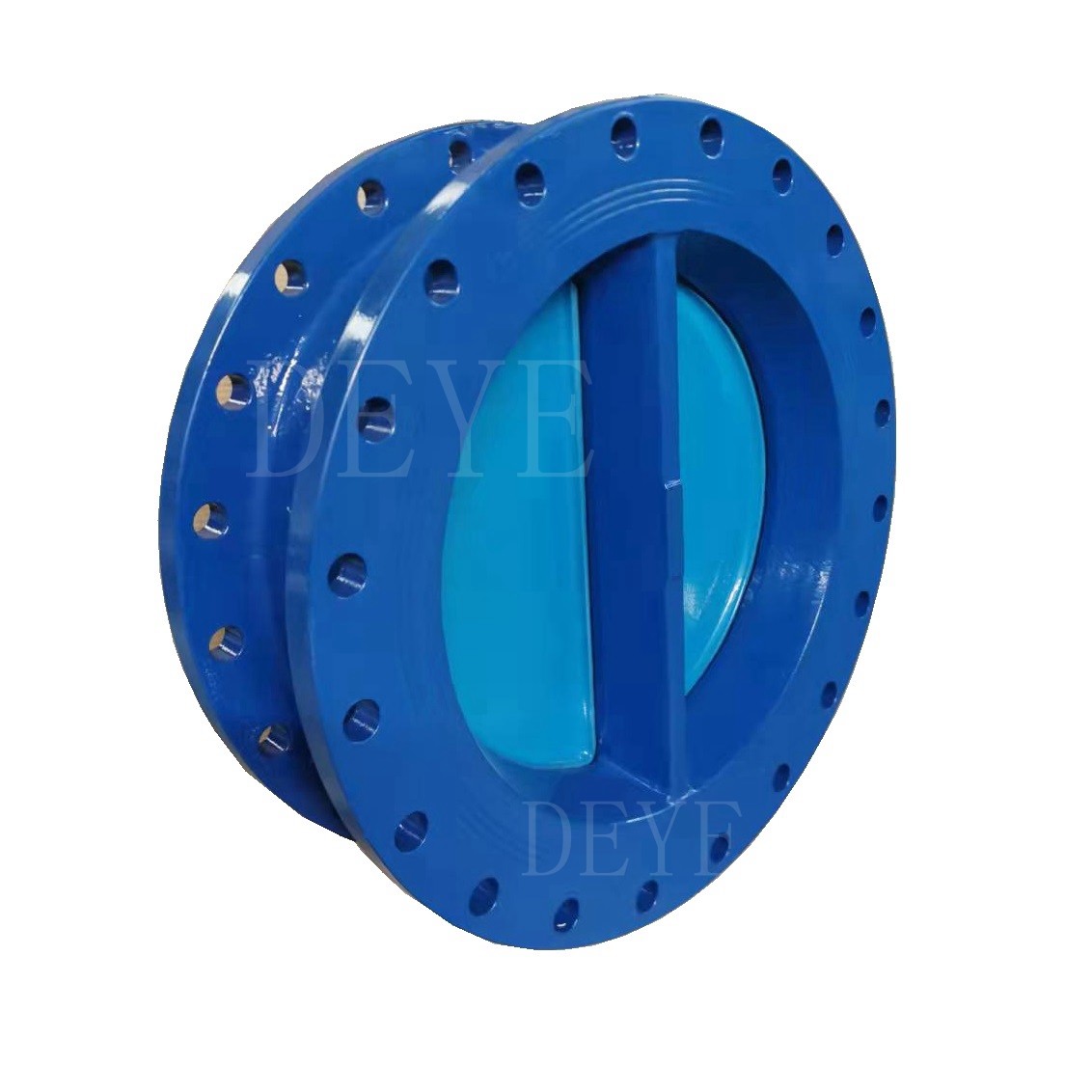

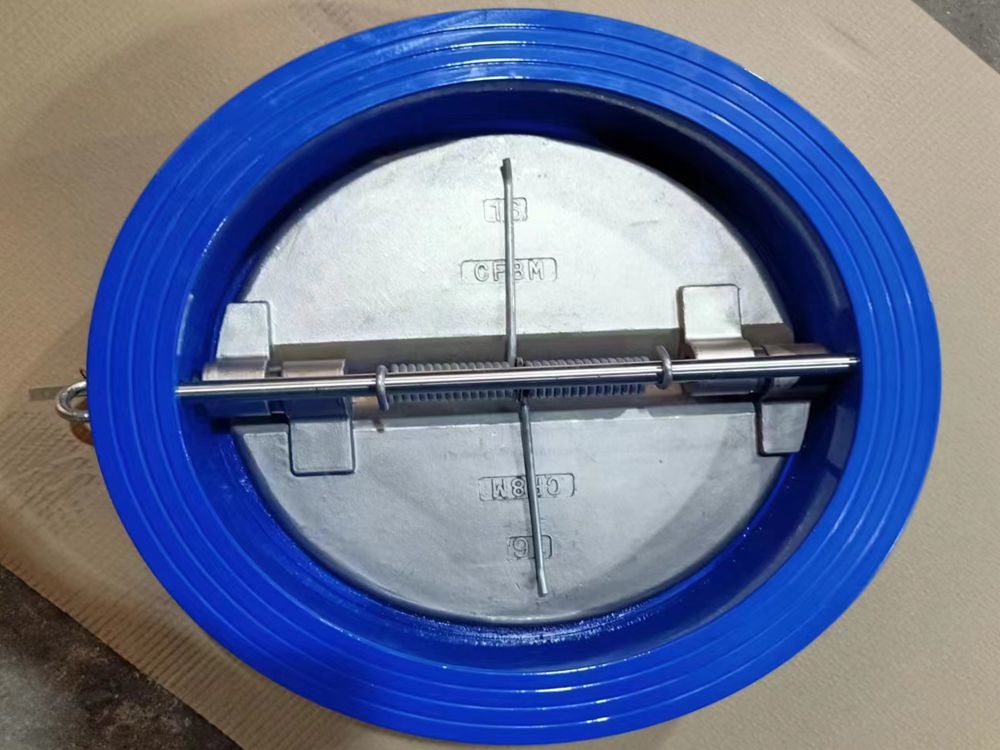

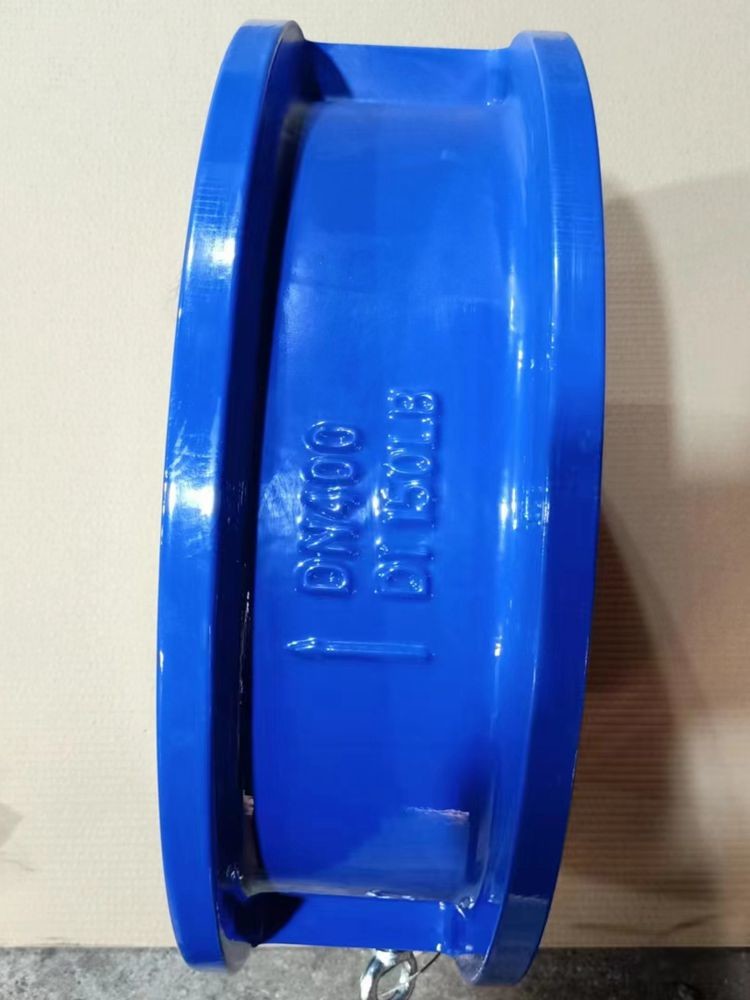

Cast Ductile Iron Water Valve Wafer Duo Plate Double Disc Check Valves

  • Cast Ductile Iron Water Valve Wafer Duo Plate Double Disc Check Valves
  • Cast Ductile Iron Water Valve Wafer Duo Plate Double Disc Check Valves
  • Cast Ductile Iron Water Valve Wafer Duo Plate Double Disc Check Valves
  • Cast Ductile Iron Water Valve Wafer Duo Plate Double Disc Check Valves
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number DY-CV-Q-12
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD20000 each
Packaging Details carton box+ ply wooden cases or carton+ Pallets
Delivery Time 20 days for usual order, 7 days for stocked items
Payment Terms T/T, L/C, D/P
Supply Ability 1000pcs one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Ductile Iron Water Valve

,

Cast Water Valve

,

Double disc check valves
Leave a Message
Product Description



Double Disc Check Valves Model No. CV-Q-12



Ductile iron/cast iron duo plate double disc check valves with DNV GL approved , ANSI 150LBS. Temperature: -40℃-+125℃



Quick Detail



Double disc spring loaded Check Valve



Design standard API594 DIN
End connection Wafer to connect flange ANSI B16.5
Face to face ANSI DIN F48
Working temperature -40℃~+125℃
Test and inspection API 598
Epoxy powder coated inside and outside Min 250Microns



Product Range:



Body connection Type: wafer, Lug, double flanged

Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50, rubber lined body

Available Disc Material: Ductile iron, Bronze, SS304 SS316,Duplex SS2205 SDSS 2507

Optional Seat Ring: EPDM, NBR, PTFE, VITON

Optional Ends: BS4504/EN1092-1 PN16/ ANSI B16.5 RF

Size Range: DN50-DN800 (2”-32”)

Pressure Range: PN10, PN16, PN20(150LBS)

Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized



Performance:



• The innovative Dual-Plate Design employs two spring-loaded plates suspended on a central vertical hinge

. As Flow Begins, the plates open in response to a resultant force Which acts at the center of the sealed Surface Area

• The Contact point of the reacting spring leg's force acts beyond the center of the plate area, causing the heel to pen first. This prevents rubbing of the seal surface prior to normal plate opening

• As the velocity of flow decreases, torsion spring action reacts automatically. The moves of plates closer to the body seats, reducing the distance and time of travel for closure. By Having

. the plates closer to the body seats at the time of flow reversal. The valve dynamic response is greatly enhanced, This dramatically reduces the water hammer effect

• At closing, the point of spring force causes the plates to close first. This prevents dragging of the heels of the plates and periods maintains seal integrity for much longer Periods



Technical Data Sheets



APPLICATIONS



Steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties, Chemicals
