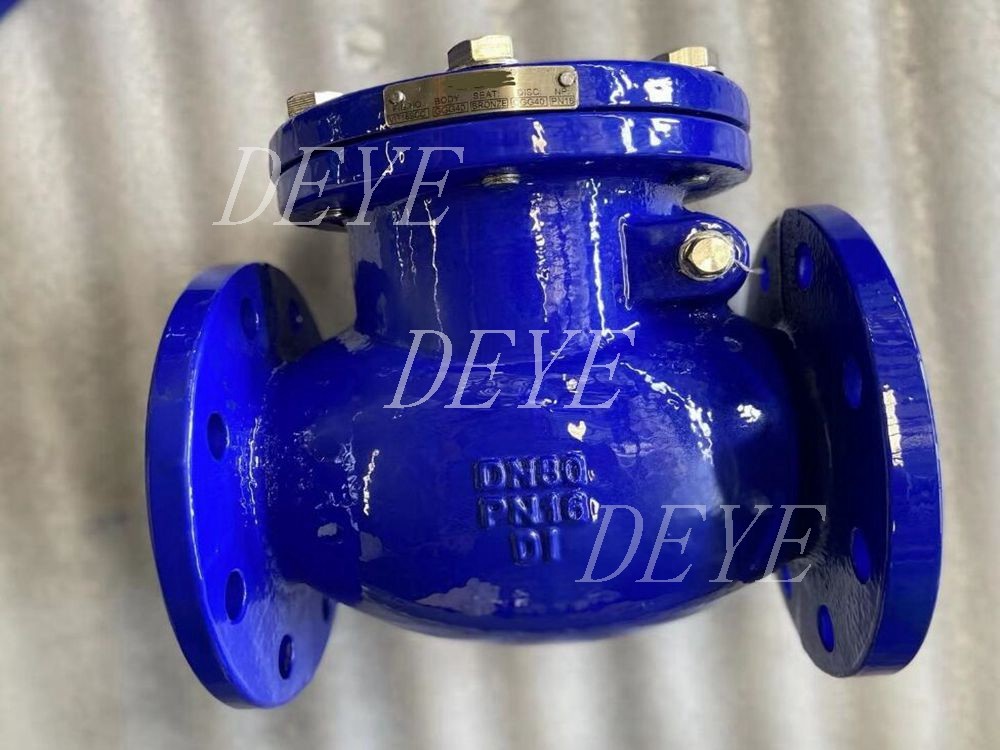

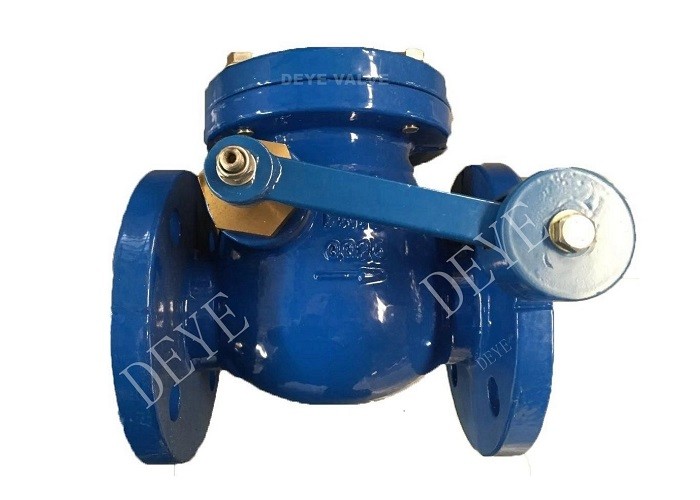

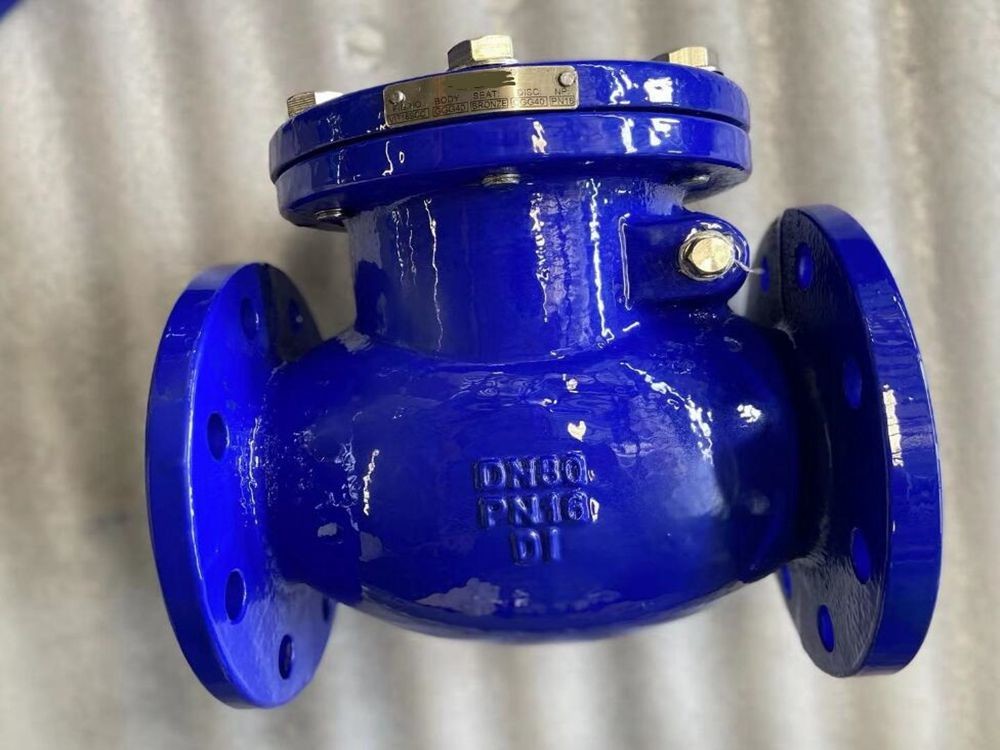

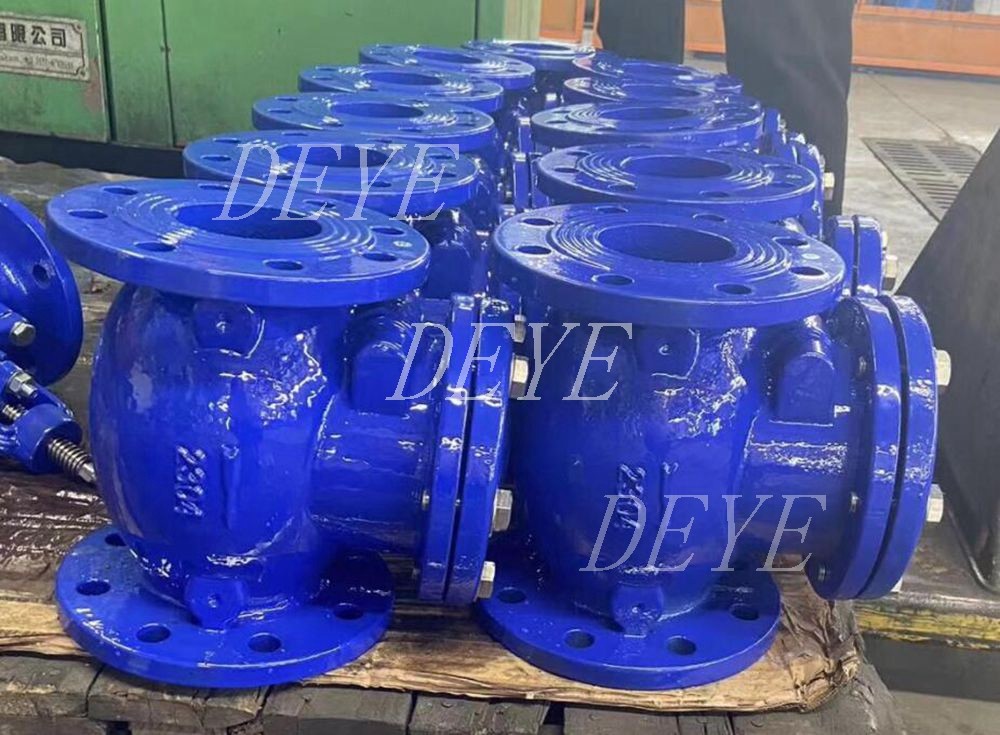

GGG50 GGG40 Cast Ductile Iron Swing Check Valves With Arm Lever Weight

  • GGG50 GGG40 Cast Ductile Iron Swing Check Valves With Arm Lever Weight
  • GGG50 GGG40 Cast Ductile Iron Swing Check Valves With Arm Lever Weight
  • GGG50 GGG40 Cast Ductile Iron Swing Check Valves With Arm Lever Weight
  • GGG50 GGG40 Cast Ductile Iron Swing Check Valves With Arm Lever Weight
Place of Origin CHINA
Brand Name DEYE
Certification ISO9001:2015 PED
Model Number DY-CV-W-06
Document Product Brochure PDF
Minimum Order Quantity 10PCS
Price USD2-USD20000 each
Packaging Details carton box+ ply wooden cases or carton+ Pallets
Delivery Time 20 days for usual order, 7 days for stocked items
Payment Terms T/T, L/C, D/P
Supply Ability 1000pcs one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

GGG40 ductile iron swing check valve

,

GGG50 ductile iron swing check valve

,

GGG50 ductile iron check valves
Leave a Message
Product Description



Iron Swing Check Valves Model No. CV-W-06



China ductile iron swing check valve manufacture supply GGG50/GG25 disc check valves with lever weight, DIN PN16. Temperature: -30℃-+350℃



Request a quote



Tags:

Cast iron check valve

Ductile iron check valve

Bronze seat check valve

Metal seat check valve

Flanged check valve

Swing check valve

Disc check valve

Project check valve

Industry PN16 check valve

Check valve with lever weight



Quick Detail



BC bonnet cover Check Valve



Material Iron
Design standard DIN 3202 F6
Body material Cast iron GG25
Nominal diameter 6” DN150
Pressure PN16
End connection RF. Flange EN1092-1
Face to face DIN3202 F6 EN558-1 Series 48
Working temperature -30℃~+350℃
Test and inspection API 598
Connection Flange ends conform to ASME B16.5 EN1092-1
Epoxy powder coated inside and outside 250Microns
FBE surface 250Mincrons



Product Range

Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50

Available Disc Material: Ductile iron, Bronze

Optional Seat Ring: Brass, Bronze, SS304, SS316, EPDM

Optional Design: DIN /BS/ ANSI with difference Face to face length

Optional Ends: BS4504/EN1092-1 PN16/ ANSI B16.5 RF

Size Range: DN50-DN600 (2”-24”)

Pressure Range: PN10, PN16, PN20(150LBS)

Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized



Performance

1.Iron Body with welded bronze seat ring.
2.Clear full opening waterway when disc is in fully open position.
3.Operating parts accessible through top opening.
4.Brass bearings support stainless steel hinge pin and pressure sealed with O-rings.
5.Heavy ductile iron clapper arm.
6.Weights or spring lever may be used on either side for these types of check valves.
7.Heavy bronze disc stud is used on all types.
8.Iron discs for metal seated valves have bronze disc rings threaded into place.
9.Epoxy coated interior and exterior for corrosion resistance.


Application:

Pipeline for water, sewage, construction, petroleum, chemical, food, medicine, textile, power, shipbuilding, metallurgy and energy system
