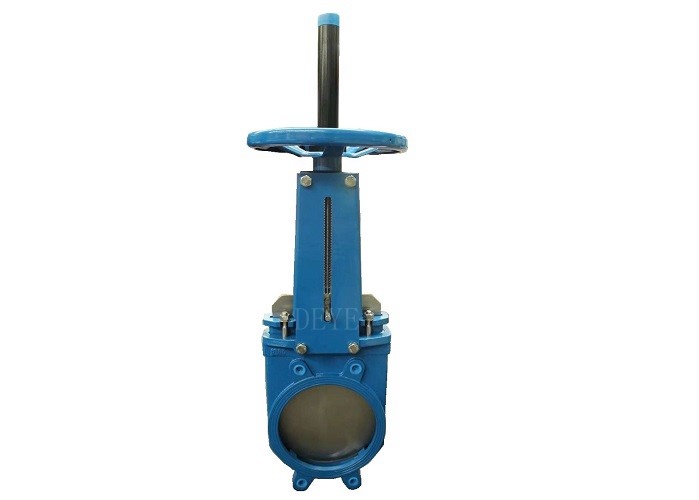

Cast Ductile Iron Wafer Style Knife Gate Valve With Rubber Seat
| Place of Origin | CHINA |
|---|---|
| Brand Name | DEYE |
| Certification | ISO9001:2015 PED |
| Model Number | DY-D-KGV-21 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10PCS |
| Price | USD2-USD20000 each |
| Packaging Details | carton box+ ply wooden cases or carton+ Pallets |
| Delivery Time | 20 days for usual order, 7 days for stocked items |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 1000pcs one month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Ductile Iron wafer style knife gate valve,Iron wafer style knife gate valve,DN1200 wafer knife gate valve |
||
|---|---|---|---|
Product Description
Quick Details:
Design: knife valve with Wafer, Lug, double Flanged conenction
Replaceable rubber seat
Seal: U type PTFE rubber
Unidirectional knife valve
Self-cleaning mechanism
Test pressure Max 2.4mpa(24kgf/cm2)
Working pressure ≤1.6mpa(16kgf/cm2)
Working Temperature ≤180°c
Suitable medium water, oil, other liquid
Surface: FBE min. 200mincrons.
Operation: Lever Armed
Specifications
| Cast Ductile Iron Knife Valves With Flange Ends | |
| Material | Iron |
| Sizes Range | 2" - 48" or DN 50 - DN 1200 |
| Pressure Rating | Class150 or PN6 - PN16 |
| Design | Knife valve with Wafer, Lug, double Flanged conenction |
| Seat type | Replaceable rubber seat |
| Seal | U type PTFE rubber |
| Flow Direction | Unidirectional / Bi-directional |
| Mechanism | Self-cleaning mechanism |
| Test pressure Max | 2.4mpa(24kgf/cm2) |
| Working pressure | ≤1.6mpa(16kgf/cm2) |
| Working Temperature | ≤180°c |
| Suitable medium | Water, oil, other liquid |
| Surface | FBE min. 200mincrons |
| Operation | Lever Armed |
| Operation Materials of valve body | Ductile iron, WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc. |
| Optional Design & Manufacture | MSS SP-61, ASME 16.34 |
| Optional ace to Face | MSS SP-81, ASME B16.10, EN 558 |
| Optional Connection End | ASME B16.5, EN 1092, JIS B2220 |
| Optional type | Wafer, lug, flanged |
| Operation Seat | Metal seated or resilient rubber EPDM, NBR, PTFE |
| Operation Shaft Design | Rising stem or non-rising Stem |
| Operation | Manual, Gear, Pneumatic, hydraulic and Electric actuator |
Product Range:
Materials of valve body: ductile iron, WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc.
Optional Design & Manufacture: MSS SP-61, ASME 16.34
Optional ace to Face: MSS SP-81, ASME B16.10, EN 558
Optional Connection End: ASME B16.5, EN 1092, JIS B2220
Optional type；Wafer, lug, flanged
Seat: metal seated or resilient rubber EPDM, NBR, PTFE
Rising stem or non-rising Stem
Sizes Range: 2" - 48" or DN 50 - DN 1200
Pressure Rating: Class150 or PN6 - PN16
Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator
Performance:
Knife gate valve is also called slurry valve and mud valve. Its opening and closing parts are knives. The movement direction of the knife is perpendicular to the direction of the fluid. It is cut by a blade-shaped gate that can cut fiber materials. The medium and the gate have two sealing surfaces. The two sealing surfaces of the most common mode gate valve form a wedge shape. The wedge angle varies with the valve parameters, usually 5°. The gate of the wedge knife gate valve can be made into one The whole is called a rigid ram; it can also be made into a ram with a small amount of deformation to improve its manufacturability and make up for the deviation of the sealing surface angle during processing. This kind of ram is called an elastic ram.
The valve body does not actually have a cavity, and the gate moves up and down in the side guide groove, and is pressed against the valve seat by the lug at the bottom. If you need to achieve a higher medium tightness, you can use an O-shaped valve seat to achieve Two-way seal.
The knife gate valve has a small installation space, low working pressure, difficult to accumulate debris, and low price.
Application:
Used on the field of Water supply, sewage, powder products, crystals, Winemaking, mineral, cement, transportation, storage etc.
